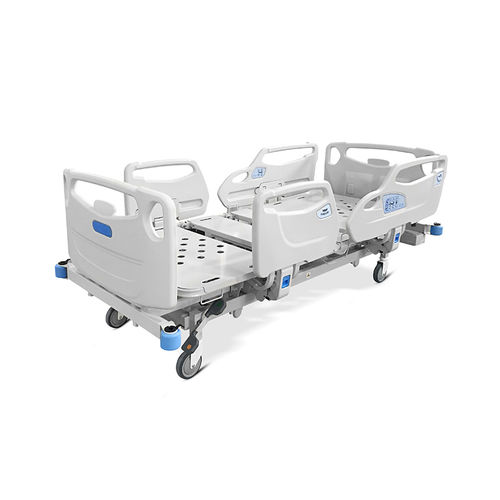

Intensive care bed YA-D5-13
electricTrendelenburgheight-adjustable

Intensive care bed - YA-D5-13 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable

Intensive care bed - YA-D5-13 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable

Intensive care bed - YA-D5-13 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 2

Intensive care bed - YA-D5-13 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 3

Intensive care bed - YA-D5-13 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 4

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

intensive care

Operation

electric

Features

height-adjustable, Trendelenburg, reverse Trendelenburg

Component

on casters

Number of sections

5-section

Height

Max.: 765 mm
(30.12 in)

Min.: 465 mm
(18.31 in)

Width

100 cm
(39.4 in)

Length

223 cm
(87.8 in)

Weight capacity

230 kg
(507.1 lb)

Description

Product overview
The YA-D5-13 electric ICU bed is designed for critical care environments with a compact frame and intuitive controls. Wide height adjustment supports clinical procedures and patient handling.

Key data

Model: YA-D5-13
Overall size: 2230 × 1000 × 465–765 mm (87.7" × 39.3" × 18.3"–30.1")
Bed surface: 1937 × 865 mm (76.2" × 34")
Safe working load: 220 kg
Maximum loading capacity: 230 kg (507 lbs)
Primary functions: Backrest, Footrest, Height adjustment, Trendelenburg, Reverse Trendelenburg
Motor: Jiechang (Linak/Timotion/Dewert optional)

Main features

Embedded side-rail controls with visible icons; nurse control panel faces outward and patient-limited buttons face inward
Central braking system with dual brake pedals on both sides for quick immobilization
Bumper casters mounted at all four corners to protect equipment and walls
Manual CPR release lever accessible on both sides for rapid flat positioning
Angle indicators on the rails with a clearly marked 30° reference on the back section for frequent adjustments

Technical parameters

Backrest adjustable: 0–70°
Footrest adjustable: 0–25°
Calf section: -15° to 15°
Height range: 465–765 mm (18.3"–30.1")
Trendelenburg / Reverse Trendelenburg: 0–12° / 0–12°
CPR function: Manual CPR lever on both sides
Castors: Corner bumper casters with central brake

Certifications & after-sales

Certifications: ISO, CE
Warranty: 3 years on frame and welds; 1 year on parts
After-sales: Online technical support
Customization: Options available on request
