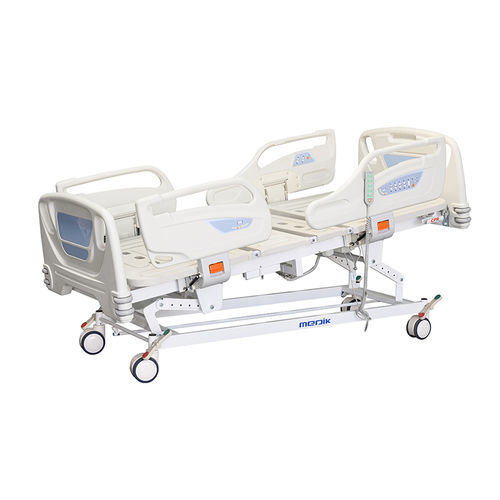

Intensive care bed YA-D5-3
electricTrendelenburgreclining

Intensive care bed - YA-D5-3 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / reclining

Intensive care bed - YA-D5-3 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / reclining

Intensive care bed - YA-D5-3 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / reclining - image - 2

Intensive care bed - YA-D5-3 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / reclining - image - 3

Intensive care bed - YA-D5-3 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / reclining - image - 4

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

intensive care

Operation

electric

Features

Trendelenburg, reclining, height-adjustable, reverse Trendelenburg

Component

with locking wheels, on casters

Number of sections

4 sections, 4-section

Height

Max.: 750 mm
(29.53 in)

Min.: 420 mm
(16.54 in)

Width

98 cm
(38.6 in)

Length

215 cm
(84.6 in)

Weight capacity

250 kg
(551.2 lb)

Description

Product overview
YA-D5-3 is a full-electric 5-function ICU hospital bed designed for intensive care use. It features embedded side-rail controls and an integrated nurse control in the foot panel, providing reliable motorized adjustments and both electric and manual CPR options. The bed is compatible with Timotion (standard), Linak and Dewert systems, and is suitable for ICU and high-dependency units.

Main features

Four-section split side rails with drop-down tuck-away design
Embedded railing control with clear iconography for patient use
Nurse control panel integrated into the footboard
Detachable headboard and footboard with quick-lock mechanism
Central brake system with 125 mm (5") wheel diameter
Manual CPR handles on both sides and single-button electric CPR
Auto-counter / anti-slip function to reduce patient sliding toward foot end
Removable ABS sleeping platform for easy cleaning and maintenance
Optional angle indicator on railing for backrest and Trendelenburg adjustments

Additional information

Customization: available on request (controls, finish, accessories)
Motor options: Jiechang referenced; Timotion standard; Linak / Dewert optional
Certification: CE / ISO
Warranty: 3 years on frame and welds; 1 year on parts

Technical parameters

Model: YA-D5-3
Overall size: 2150 × 980 × 420–750 mm (84.5" × 38.5" × 16.5"–29.5")
Lying surface size: 1960 × 900 mm (77" × 33.5")
Height adjustment: 420–750 mm (16.5"–29.5")
Backrest angle: 0–75°
Foot section angle: 0–35°
Trendelenburg / Reverse Trendelenburg: 0–13° / 0–13°
Load capacity: 250 kg (550 lbs)
Wheels: central brake system, 125 mm (5") diameter
Materials: removable ABS panels; powder-coated frame after electrophoresis
