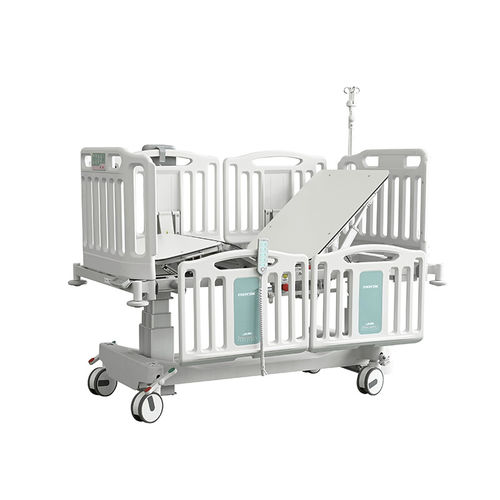

The special design of YA-PD5-3 provides all the features for children’s safety and comfort. The prominent aesthetic features considered in the design of this pediatric bed creates a warm and friendly environment for the children to experience a more relaxed treatment period.
Main features
- The four-piece safety sides with transparent windows complete the design concept of the bed ends.
- The transparent bed ends provide a pleasant and joyful opportunity for the children to interact with their companions, caregivers, and others in the room during treatment period.
- User friendly handset control
- Rotary bumpers that are located on four corners of the bed
- All positions of this bed are achieved by powerful, reliable, and low noise actuators.
- Urine bag holders can be easily installed on either side of the bed in one step.
- 150 mm central locking casters run extremely smoothly, the quality that makes it significantly easy for the nursing staff to move the bed.
Technical parameter
Overall dimensions - 1960 *980 *710-1110mm
Mattress platform - 1640 x 725 mm
Safety side height - 685 mm
Height adjustment - 710-1110mm
Back section adjustment - 0-75°
Foot section adjustment - 0-30°
Trendelenburg - 15°
Reverse trendelenburg - 15°
Bed weight - 215 kg
Casters - φ150 mm
Safe working load - 150 kg
