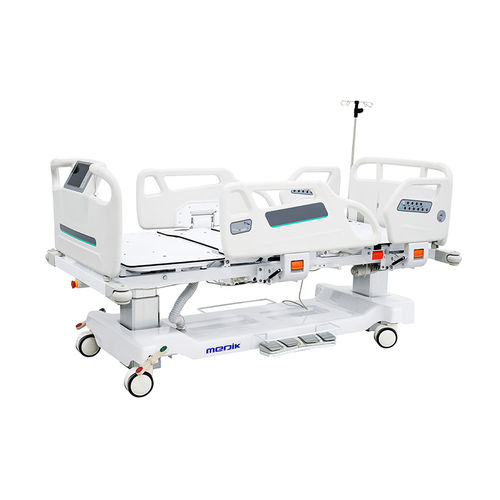

Intensive care bed YA-D7-3
electricrecliningreverse Trendelenburg

Intensive care bed - YA-D7-3 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg

Intensive care bed - YA-D7-3 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg - image - 2

Intensive care bed - YA-D7-3 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg - image - 3

Intensive care bed - YA-D7-3 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg - image - 4

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

intensive care

Operation

electric

Features

reclining, reverse Trendelenburg, lateral tilting, Trendelenburg, height-adjustable

Component

with locking wheels, with weighing scale, on casters

Number of sections

4-section

Height

Min.: 510 mm
(20.08 in)

Max.: 910 mm
(35.83 in)

Width

105 cm
(41.3 in)

Length

212 cm
(83.5 in)

Weight capacity

250 kg
(551.2 lb)

Description

Product overview
An intensive care (ICU) bed designed for critical care rooms, providing multiple electric adjustments, integrated clinical features and patient-handling functions to support medical staff workflow.

Summary
Model: YA-D7-3
Overall size: 2120×1050×510–910 mm
Loading capacity: 250 kg (safety working load: 240 kg)
Certificates: ISO, CE
Motor: Jiechang (options: Linak / Timotion / Dewert)
After-sales: Online technical support
Warranty: 3 years on frame and welds; 1 year on parts

Main features

Four split tuck-away side railings
Embedded side-rail controls for patient and nurse
Embedded touchscreen nurse control in the footboard
Detachable head and foot panels with quick locking
Casters Ø125 mm with central locking
Bump casters on four corners
X-ray platform with cassette holder
Length extension (150 mm)
Integrated weighing scale
Automatic locking
Degree indicators embedded in all side railings
Emergency stop button
Night light
Manual CPR on both sides
Foot pedal control
Battery backup

Technical parameters

Model: YA-D7-3
Overall size (product listing): 2120×1050×510–910 mm
Overall size (technical table): 2120×1050×510 mm
Height adjustment: 510–910 mm (20"–36")
Backrest adjustment: 0–75°
Footrest adjustment: 0–45°
Trendelenburg / Reverse Trend: 0–15°
Lateral tilting: 0–15°
Length extension: 150 mm (6")
Loading capacity (summary): 250 kg
Safety working load (table): 240 kg (530 lbs)
Motors: Jiechang (Linak/Timotion/Dewert options)
Certifications: ISO, CE
Warranty: 3 years on frame and welds; 1 year on parts
