Intensive care bed YA-D5-1
electricTrendelenburgheight-adjustable

Intensive care bed - YA-D5-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable

Intensive care bed - YA-D5-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable

Intensive care bed - YA-D5-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 2

Intensive care bed - YA-D5-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 3

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

intensive care

Operation

electric

Features

height-adjustable, Trendelenburg, reverse Trendelenburg

Component

on casters, with locking wheels

Number of sections

5-section

Height

Max.: 750 mm
(29.53 in)

Min.: 450 mm
(17.72 in)

Width

98 cm
(38.6 in)

Length

220 cm
(86.6 in)

Weight capacity

220 kg
(485 lb)

Description

Product Overview

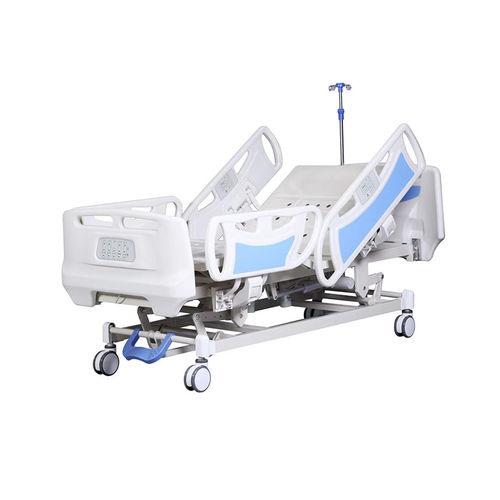

MEDIK YA-D5-1 electric hospital bed is a fully electric ICU bed designed for patient care in intensive care units. It supports clinical workflows by offering motorised adjustment of backrest, leg section, overall bed height and Trendelenburg/reverse Trendelenburg positions, with dedicated nurse and patient controls.

Main features

Bed frame: electrophoresis and powder coating
Bed platform: removable ABS platform
Motors: quiet, robust electric actuators for reliable operation
Integrated controller to operate all electric functions
4 ABS tuck-away side rails, collapsible below mattress level
Detachable ABS headboard and footboard
Central brake system with 125 mm wheels
Handheld remote control and patient control integrated into side rails
Nurse control located in the footboard with side-rail control and function lockout
Auto-counter to reduce patient migration toward the foot end
Electric CPR function operated by a single button on the side rails; manual CPR also available

Model information

Model: YA-D5-1
Color options: Green, Blue, Yellow
Motor options: Jiechang standard; Linak, Timotion, Dewert optional
Warranty: 3 years on frame and welds; 1 year on parts
After-sale service: online technical support
Certificates: CE, ISO
Customization: available

Technical parameters

Overall size (L×W×H): 2200 × 980 × 450 mm (adjustable height 450–750 mm)
Lying surface: 1950 × 850 mm
Back section angle: 0–70°
Foot section angle: 0–40°
Height adjustment: 450–750 mm
Trendelenburg / Reverse Trendelenburg: 0–12° each
Safe working load: 220 kg
Wheel diameter: 125 mm
CPR: electric single-button and manual

VIDEO

Catalogs

YA-D5-1 Medical Electric Bed 5 Function

YA-D5-1 Medical Electric Bed 5 Function

1 Pages

Go to the Zhangjiagang Medi Medical Equipment website for more information
