Hospital bed YA-D3-5
electricultra-lowheight-adjustable

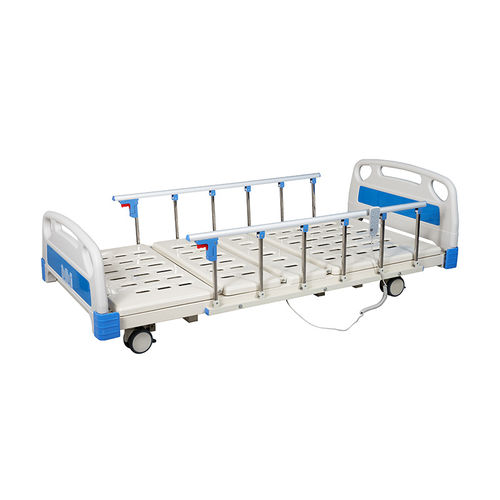

Hospital bed - YA-D3-5 - Zhangjiagang Medi Medical Equipment - electric / ultra-low / height-adjustable

Hospital bed - YA-D3-5 - Zhangjiagang Medi Medical Equipment - electric / ultra-low / height-adjustable

Hospital bed - YA-D3-5 - Zhangjiagang Medi Medical Equipment - electric / ultra-low / height-adjustable - image - 2

Hospital bed - YA-D3-5 - Zhangjiagang Medi Medical Equipment - electric / ultra-low / height-adjustable - image - 3

Hospital bed - YA-D3-5 - Zhangjiagang Medi Medical Equipment - electric / ultra-low / height-adjustable - image - 4

Hospital bed - YA-D3-5 - Zhangjiagang Medi Medical Equipment - electric / ultra-low / height-adjustable - image - 5

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

hospital

Operation

electric

Features

height-adjustable, ultra-low

Component

on casters, with locking wheels

Number of sections

3-section, 3 sections

Height

Max.: 560 mm
(22.05 in)

Min.: 260 mm
(10.24 in)

Width

92 cm
(36.2 in)

Length

205 cm
(80.7 in)

Weight capacity

200 kg
(440.9 lb)

Description

Product overview
YA-D3-5 is an ultra-low electric hospital bed with an Auto-contour function that raises the backrest and knee section simultaneously to improve patient positioning and reduce skin shear during repositioning. The bed offers smooth motorized adjustment of backrest, knee rest and overall height, remote hand control and removable head/foot boards for clinical access.

Main features

Minimum height 260 mm (ultra-low) and height range 260–560 mm
Three electric actuators for controlled, synchronized movement
Auto-contour: simultaneous backrest and knee adjustment
Aluminum alloy foldable side rails, 6-bar design
Detachable ABS headboard and footboard
Electric CPR release function
Four corner bumpers and 125 mm casters (360° rotation, central lock)
Four fittings for IV poles and two drainage bag holders
Cold-rolled steel frame with powder coating

Technical parameters

Model: YA-D3-5
Overall size (L x W x H): 2050 x 920 x 260 mm
Height adjustment range: 260–560 mm
Backrest angle: 0–75°
Knee section angle: 0–40°
Safe working load (SWL): 200 kg
Casters: 125 mm, 360° swivel with central lock
Actuators: 3 electric actuators
Motor: Jiechang standard; Linak / Timotion / Dewert optional

Accessories and options

IV pole (4 mounting positions)
Drainage bag holders (2)
Optional mattresses and mattress covers
Optional side-rail padding and caster brakes

Warranty & Certification

Warranty: 3 years on frame and welds; 1 year on parts
Certificates: CE, ISO

After-sales service

Online technical support
Customization available on request

VIDEO

Catalogs

YA-D3-5 Electric Ultra Low Hospital Bed

YA-D3-5 Electric Ultra Low Hospital Bed

4 Pages
