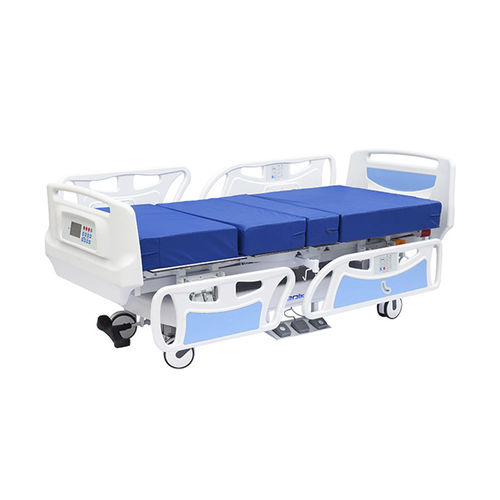

Intensive care bed YA-D7-1
electricTrendelenburgheight-adjustable

Intensive care bed - YA-D7-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable

Intensive care bed - YA-D7-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 2

Intensive care bed - YA-D7-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 3

Intensive care bed - YA-D7-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 4

Intensive care bed - YA-D7-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 5

Intensive care bed - YA-D7-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 6

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

intensive care

Operation

electric

Features

height-adjustable, Trendelenburg, reverse Trendelenburg

Component

on casters, with locking wheels, with weighing scale

Number of sections

4-section

Height

Max.: 780 mm
(30.71 in)

Min.: 530 mm
(20.87 in)

Width

105 cm
(41.3 in)

Length

228 cm
(89.8 in)

Weight capacity

230 kg
(507.1 lb)

Description

Product description The YA-D7-1 electric ICU bed is designed for critical and intensive care environments, providing adjustable patient positioning, integrated safety features and functions to support clinical workflows.

Main features

Four split drop-down side rails
Integrated rail control with clear icons
Nurse control in foot panel with LED movement status
Detachable head and foot boards with quick locks
Central brake system with 125 mm castors
Auto-regress to reduce abdominal pressure when raising the backrest
Auto-counter to prevent patient sliding toward foot end
Full-length X-ray translucent platform
Integrated weighing scale system
One-button emergency stop to halt all movements
Electric CPR function
Manual CPR access on both sides
Bumper castors on four corners
Angle indicators for backrest, Trendelenburg and reverse Trendelenburg

Technical parameters
Model: YA-D7-1
Overall size (L×W×H): 2280 × 1050 × 530 mm (90" × 41" × 21")
Height adjustable: 530–780 mm (21"–31")
Back section angle: 0–75° ±5°
Foot section angle: 0–40° ±5°
Trendelenburg: 0–12°
Reverse Trendelenburg: 0–12°
Castor diameter: 125 mm (5")
Loading capacity: 230 kg (505 lbs)

Additional product information

Model: YA-D7-1
Overall size: 2280 × 1050 × 530–780 mm
Loading capacity: 230 kg
Functions: Backrest, Footrest, Height adjustment, Trendelenburg/Reverse Trendelenburg, Electric CPR, Weighing scale
Color options: Green, Blue, Wood
Motor: Jiechang (Linak/Timotion/Dewert optional)
Certifications: CE / ISO
After-sale service: Online technical support
Warranty: 3-year frame & welds, 1-year parts

Technical specifications

Model: YA-D7-1
Overall dimensions (L × W × H): 2280 × 1050 × 530 mm
Height adjustment range: 530–780 mm
Backrest angle: 0–75° ±5°
Foot section angle: 0–40° ±5°
Trendelenburg / Reverse Trendelenburg: 0–12°
Castor diameter: 125 mm
Maximum loading capacity: 230 kg
