Intensive care bed YA-D6-1
electricTrendelenburgheight-adjustable

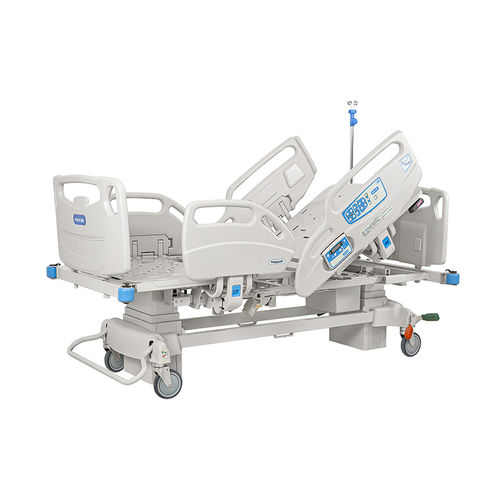

Intensive care bed - YA-D6-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable

Intensive care bed - YA-D6-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 2

Intensive care bed - YA-D6-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 3

Intensive care bed - YA-D6-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 4

Intensive care bed - YA-D6-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 5

Intensive care bed - YA-D6-1 - Zhangjiagang Medi Medical Equipment - electric / Trendelenburg / height-adjustable - image - 6

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

intensive care

Operation

electric

Features

height-adjustable, tilting, Trendelenburg, reverse Trendelenburg

Component

on casters, column type

Number of sections

4-section

Height

Min.: 500 mm
(19.69 in)

Max.: 900 mm
(35.43 in)

Width

105 cm
(41.3 in)

Length

215 cm
(84.6 in)

Weight capacity

230 kg
(507.1 lb)

Description

Product overview
YA-D6-1 is MEDIK's next-generation electric ICU bed designed for intensive and long-term clinical care. The stable double-column lift, four-section perforated steel platform and removable ABS panels enable precise patient positioning and facilitate clinical handling. One-button functions, alarms and battery backup support continuous workflows and rapid interventions.

Main features

Stable double-column lift structure
Four-section MS perforated platform
Removable ABS head and foot panels
Electric and manual CPR functions
Auto-Counter anti-slip function
One-button chair position
One-button flat (lying) position
Tilt CPR function
Individual locking for each button set
Warning light when bed is not in lowest position
Castor no-brake alarm
Battery backup
Integrated night light
Four provisions for IV pole

Key information

Model: YA-D6-1
Brand: MEDIK
Overall size: 2150 x 1050 x 500–900 mm
Safe working load: 230 kg
Functions: Backrest, Footrest, Height adjustment, Trendelenburg, Reverse Trendelenburg, CPR
Motor: Jiechang (options: Linak, Timotion, Dewert)
Certificates: CE, ISO
Warranty: 3 years on frame and welds; 1 year on parts

Technical parameters

Model: YA-D6-1
Overall dimensions: 2150 x 1050 x 500–900 mm
Lying surface size: 1950 x 860 mm
Height adjustment: 500–900 mm
Back section: 0–70° ±5°
Knee section: 0–33° ±3°
Foot section up/down: +10° ~ -18°
Trendelenburg / Reverse Trendelenburg: 0–15° ±2°
Bed surface extension (manual): 0–100 mm
Safe working load: 230 kg
Castors: Ø125 mm
Motor options: Jiechang; optional Linak, Timotion, Dewert

Accessories and after-sales

Standard accessories: 1 IV pole, 4 IV pole fixings, 2 drainage hooks
Optional accessories: side rails, mattress, oxygen holder
After-sales: online technical support
Battery backup for power failure

Catalogs

YA-D6-1 Hospital ICU Bed

4 Pages

YA-D6-1 ICU Hospital Bed Brochure

5 Pages
