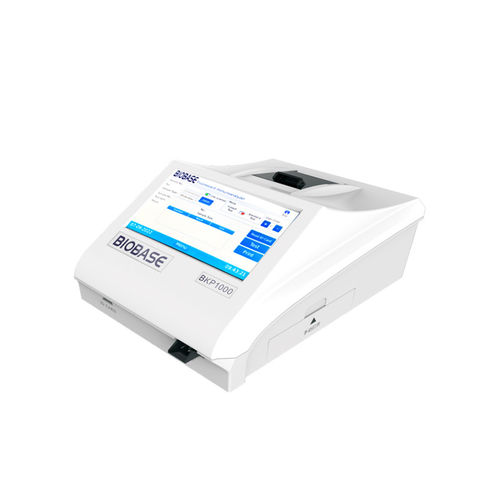

Automatic immunoassay analyzer BKP1000

for clinical diagnosticfor researchfor the food industry

Introduction: BKP1000 is a compact fluorescence immunoassay analyzer designed for primary clinical use. It integrates a leading flow system and machine topology to provide a space‑efficient single‑channel solution suitable for point‑of‑care, clinics and small laboratories.

Application: Clinical diagnosis and disease control, medical treatment support, health examination centers, research laboratories, food safety testing, blood product companies and central blood stations.

Features:

• Compact, portable footprint with 7‑inch color touch screen.
• Built‑in thermal printer; results can be printed automatically.
• Compatible with barcode scanner and LIS/HIS integration (RS232, USB, Ethernet).
• Sample types: serum, plasma, whole blood and urine; supports random sample insertion for on‑demand testing.
• Supports multiple analytes per test card; detection time can reach ~8 s/test with typical throughput <10 s/test.
• Two operation modes: instant test and standard test.

Technical Parameters:

• Model: BKP1000
• Excitation light source: LED
• Excitation wavelength: λ0 = 365 nm; Detection wavelength: λ1 = 615 nm
• Detection channel: 1
• Sample types: serum, plasma, whole blood, urine
• Detection mode: multiple items per card
• Testing speed: <10 s/test (detection time up to ~8 s/test)
• Repeatability: CV ≤ 5%
• Stability: σ ≤ ±8%
• Linear correlation: r ≥ 0.98
• Accuracy: Δn ≤ ±8%
• Display: 7‑inch color touch screen
• Languages: Chinese, English; other languages customizable
• Interfaces: RS232, USB, Ethernet
• Printer: built‑in thermal printer
• Power supply: 100–240 V, 50/60 Hz
• External size (L×W×H) mm: 228 × 312 × 158
• Net weight: 3 kg; Gross weight: 4.5 kg; Package size mm: 455 × 325 × 245

Note: Supplied with 5 CRP test cards for installation and validation.

Characteristics / Technical specifications:

• Single‑channel fluorescence immunoassay analyzer
• Fast detection: ~8 s per test using compatible reagent card
• Sample types: serum/plasma/whole blood/urine
• Connectivity: barcode, LIS/HIS, USB, Ethernet
