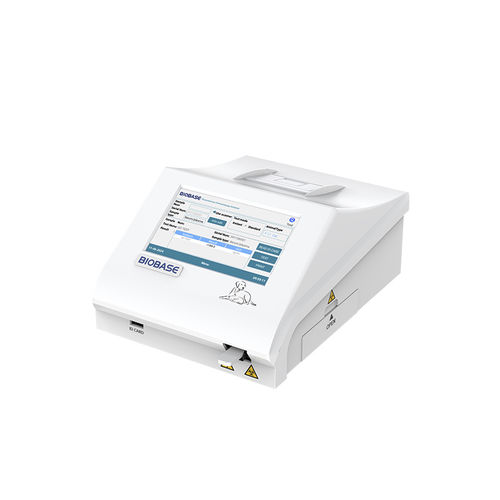

Automatic immunoassay analyzer BKP series

veterinaryfor researchfor veterinary diagnosis

Introduction: The veterinary fluorescence immunoassay analyzer is a compact diagnostic analyzer designed for rapid quantitative and qualitative detection of biomarkers in animal samples. It supports LIS/HIS data transmission and USB export and covers inflammatory, myocardial, infectious and reproductive markers relevant to veterinary diagnostics.

Applications:

• Animal experimental centers and research institutes
• Animal and plant quarantine departments
• Zoos, pet hospitals and veterinary clinics
• Animal husbandry and veterinary service systems

Key features:

• Single detection time under 10 s
• Built-in barcode scanner for automatic sample and test identification
• Random insertion of samples; supports multiple-item detection on one card
• Standard LIS/HIS transmission and USB data export; built-in thermal printer

Parameters (summary):
Model | BKP1000VET | BKP2000VET
Animal type | Cat, dog
Excitation light source | LED
Wavelength | Excitation λ0 = 365 nm; Detection λ1 = 615 nm
Detection channels | 1
Incubation positions | BKP1000VET: 1 | BKP2000VET: 12
Sample types | Serum, plasma, whole blood, urine
Detection mode | Multiple items per card supported
Testing speed | <10 s/test
Repeatability | CV ≤ 5%
Stability | σ ≤ ±8%
Linear correlation | r ≥ 0.98
Accuracy | Δn ≤ ±8%
Display | BKP1000VET: 7.0-inch color touch screen; BKP2000VET: 10.1-inch color touch screen
Interfaces | RS232, USB, Ethernet
Power supply | AC100~240V, 50/60Hz
Dimensions (W*D*H) mm | BKP1000VET: 215*310*158; BKP2000VET: 336*410*400
Net weight (kg) | BKP1000VET: 3; BKP2000VET: 17

Reagent product menu:

• Infectious disease series
  • Feline Panleukopenia Virus (FPV) Test Kit (fluorescence immunochromatography)
  • Feline Coronavirus (FCoV) Test Kit
  • Feline Herpesvirus (FHV) Test Kit
  • Feline Calicivirus (FCV) Test Kit
  • Canine Distemper Virus (CDV) Test Kit
  • Canine Coronavirus (CCV) Test Kit
  • Canine Parvovirus (CPV) Test Kit
  • Feline antibody triple (FPV Ab / FHV Ab / FCV Ab) Test Kit
  • Canine antibody triple (CPV Ab / CDV Ab / ICH Ab) Test Kit
• Inflammation series
  • Feline Serum Amyloid A (fSAA) Test Kit
  • Canine C-reactive Protein (cCRP) Test Kit
• Myocardial series
  • Canine Cardiac Troponin I (ccTnI) Test Kit
  • Canine NT-proBNP (cNT-proBNP) Test Kit
  • Feline Cardiac Troponin I (fcTnI) Test Kit
  • Feline NT-proBNP (fNT-proBNP) Test Kit
• Reproductive series
  • Canine Progesterone (cProg) Detection Kit

Technical & ordering information:

• Brand: BIOBASE
• Origin: CHINA
• Models: BKP1000VET, BKP2000VET
• Delivery time: within 7 days
• Supply: direct from factory
