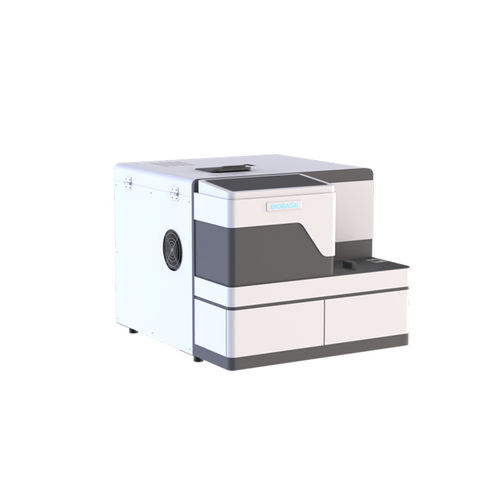

Automated immunoassay analyzer BKI1100

for clinical diagnosticmagnetic bead-basedchemiluminescence immunoassay

Introduction
The BKI1100 is an automated chemiluminescence immunoassay system designed for clinical laboratories. It combines magnetic particle separation with enzymatic chemiluminescence detection to deliver fast reaction kinetics, high sensitivity and stable signal output, suitable for high-throughput routine and STAT testing.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BKI1100

Technical specifications
Model: BKI1100
Throughput: 180 tests/hour
Principle: Magnetic particle enzymatic chemiluminescence
Modes of operation: Random, Batch, STAT
Separation method: Magnetic separation technology
Sample positions: 60 (each position can serve as an emergency position)
Reagent positions: 25 (refrigerated, 2–8°C)
Incubation positions: 58
Time to first result: 18 minutes
Sample volume: 10–200 μL
Detection precision: CV ≤ 3%
Carry-over rate: ≤ 1×10^-5
Correlation coefficient: r ≥ 0.99
Calibration stability: 28 days
Calibration type: 6/7-point calibration
Software system: Windows 7/8/10 (32/64-bit), bi-directional, HL7 support, intuitive UI, intelligent data management
Interface: TCP/IP network interface
Power supply: AC220V 50/60Hz (standard); AC110V 60Hz (optional)
External dimensions (W×D×H): 768×771×568 mm
Net weight: 90 kg
Package size (W×D×H): 940×840×1105 mm
Gross weight: 150 kg

Key features

• Magnetic-particle separation for improved reaction speed and efficiency
• Enzymatic chemiluminescence with high sensitivity and stable light signal
• High throughput: 180 tests/hour with 60 sample positions and STAT capability
• Reagent refrigeration (25 positions) and 6/7-point calibration for reliable results
• Integrated software with HL7 support and TCP/IP connectivity for LIS interfacing
• Safety and usability: liquid level detection, anti-collision, barcode scanning, intelligent alarms
