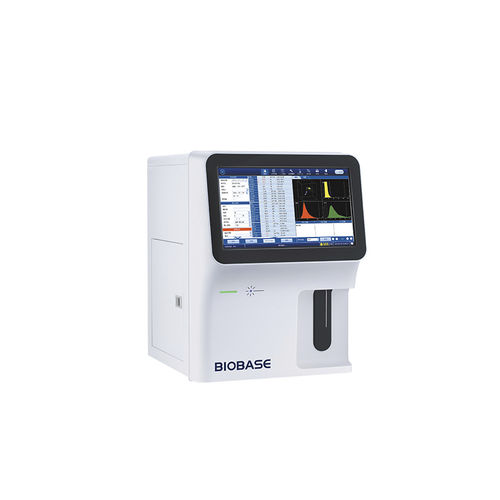

Veterinary hematology analyzer BK-6310VET

automatedbenchtop25-parameter

Product overview
BIOBASE 5-Part Veterinary Hematology Analyzer represents cutting-edge technology in veterinary diagnostics, offering precise and efficient blood analysis for comprehensive veterinary care. With its advanced features and user-friendly interface, it provides veterinarians with accurate results quickly, aiding in timely diagnoses and treatment decisions.

Product details
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Model: BK-6310VET

Features

• Throughput 60T/H.
• 14-inch touch screen.
• Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
• 3D holographic scattergram displays the accurate 5-part differentiation of WBC.
• Large storage capacity: 300,000 results (including histogram, scattergram, animal information).

Technical Parameters
Model: BK-6310VET
Throughput: 60 Tests/hour
Sample Profile: Dog, cat, horse, sheep, goat, camel, cow, more species coming soon
Assay Items: 5 parts, 25 parameters, 3 histograms, 3D scattergram
Principle: Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test
Test Mode: CBC mode, CBC+DIFF mode; Venous whole blood, prediluted
Sample Volume: CBC+DIFF mode: 19.8μl; CBC mode: 10μl; prediluted blood: 20μl
Parameters measured: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#; Research parameters: ALY%, ALY#, LIC%, LIC#
Performance - Linearity range / Carry Over / CV:
WBC: 1~99.9*10^9/L / ≤0.5% / ≤2.0%
RBC: 0.3~7*10^12/L / ≤0.5% / ≤1.5%
HGB: 20~240 g/L / ≤0.5% / ≤1.5%
PLT: 20~999*10^9/L / ≤1.0% / ≤4.0%
Storage: 300,000 results including histograms, scattergrams and patient information
Interface: 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader
Power Supply: AC100-240V, 50/60Hz, 300VA
Package Size (W*D*H): 575*490*690 mm
Gross Weight: 46 kg
Reagent Package Size: 330*330*330 mm; 400*290*240 mm; 400*290*240 mm
Reagent Gross Weight: 22 kg; 2 kg; 2 kg

Caractéristiques / spécifications techniques

• Model: BK-6310VET
• Throughput: 60 tests/hour
• Sample types supported: multiple animal species (dog, cat, horse, sheep, goat, camel, cow, etc.)
• Measurement methods: Tri-angle laser scatter, flow cytometry, impedance, cyanide-free HGB
• Measured outputs: 25 parameters including 5-part WBC differential, 3 histograms and 3D scattergram
• Storage capacity: up to 300,000 results (with histograms, scattergrams and animal info)
• Connectivity: USB, LAN, LIS bi-directional, HL7 support, internal RFID
• Power: AC100-240V, 50/60Hz, 300VA
• Dimensions (package): 575 x 490 x 690 mm; Gross weight: 46 kg
