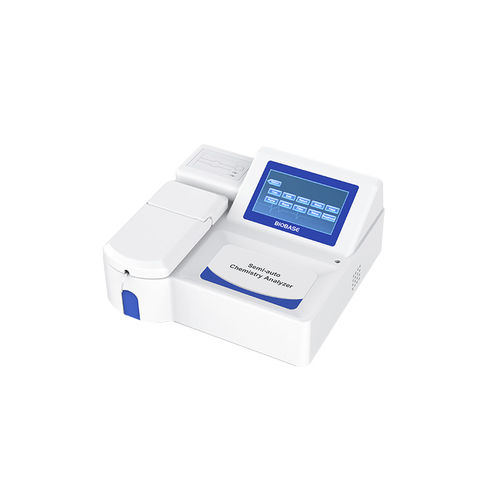

Semi-automatic biochemistry analyzer BIOBASE-Claire

benchtopphotometricplasma

Introduction
The BIOBASE-Claire semi-automatic chemistry analyzer integrates a microprocessor control system, optical colorimetric detection, a 7.0 in touch LCD and an operation keyboard. It is intended for routine clinical biochemistry testing of human serum and related sample types in hospitals and diagnostic laboratories.

Product information
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BIOBASE-Claire

Key features

• 7.0 in LCD touch screen with graphical interface for simplified operation.
• Large memory: stores up to 144 test items and 5,600 results.
• Built-in thermal printer to print results and flag abnormal values; RS-232 and USB interfaces for data transfer.

Technical specifications

• Model: BIOBASE-Claire
• Sample types: Serum, plasma, urine, cerebrospinal fluid, etc.
• Analytical methods: End point, fixed time (two-point), dynamic (rate) methods.
• Cuvette: Flow-through direct-reading cuvette.
• Wavelengths: 340 / 405 / 450 / 510 / 546 / 578 / 630 nm (+2 open filter positions).
• Wavelength accuracy: ±2 nm.
• Screen: 7.0 in LCD touch screen.
• Memory: 144 test items; 5,600 test results.
• Printer: Built-in thermal printer.
• Interfaces: RS-232, USB.
• Power: AC110/220V ±10%, 50/60Hz; consumption 100 VA.
• External dimensions (W×D×H): 400 × 410 × 190 mm.
• Packed dimensions (W×D×H): 520 × 490 × 330 mm.
• Net weight / Gross weight: 8 kg / 11 kg.

Applications

• Routine clinical biochemistry assays in hospital laboratories and diagnostic centers.
• Suitable for serum/plasma screening, urine analysis and CSF testing workflows.
