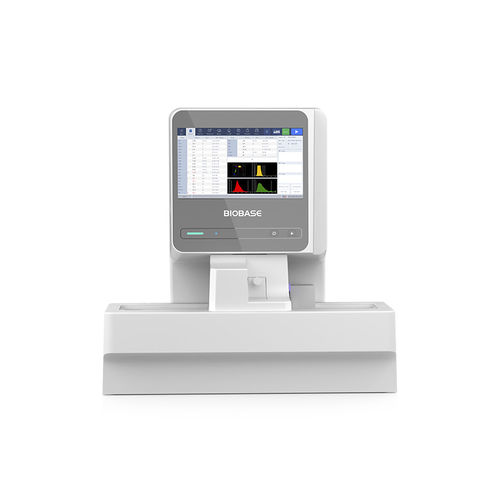

Automated hematology analyzer BK-6500

benchtop25-parameter5-part differentiation

Product overview
Brand: BIOBASE
Model: BK-6500
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
The BK-6500 is a 5-part automated hematology analyzer for in vitro diagnostic use based on tri-angle laser scatter, flow cytometry and impedance principles. It provides quantitative and qualitative analysis of red blood cells, white blood cells and platelets for clinical laboratory workflows.

Key features

• Throughput: 70 tests/hour.
• 14" capacitive touchscreen (1366×768) for local operation and review.
• 50-sample loading tray with automatic loading, mixing and sampling.
• Counting principles: tri-angle laser scatter + flow cytometry + impedance (RBC/PLT).
• 3D holographic scattergram for accurate 5-part WBC differentiation.
• Internal storage up to 300,000 results including histograms, scattergrams and patient data.

Technical parameters

• Assay items: 5-part differential, 25 reportable parameters, 3 histograms (WBC/BASO, RBC, PLT), 3D scattergram.
• Principles: tri-angle laser scatter, flow cytometry, 3D scattergram analysis; impedance for RBC and PLT counting; cyanide-free HGB method.
• Test modes: CBC, CBC+DIFF; supports venous whole blood, capillary whole blood and prediluted samples.
• Sample volume: CBC+DIFF ≤20 μl; CBC ≤10 μl.
• Reportable parameters: 25 clinical parameters (WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#) and 6 research parameters (ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC#).

Performance & storage

• Performance examples (linearity / carry-over / CV): WBC 0–300.0×10^9/L (≤0.5% / ≤2.0% CV); RBC 0–8.00×10^12/L (≤0.5% / ≤1.5% CV); HGB 0–260 g/L (≤0.5% / ≤1.5% CV); PLT 0–3000×10^9/L (≤1.0% / ≤4.0% CV).
• Storage: up to 300,000 results with histograms, scattergrams and patient information.

Connectivity, dimensions & power

• Display: 14" touch screen, resolution 1366×768.
• Interface: 4×USB, 1×LAN, bi-directional LIS, HL7 support, internal RFID reader.
• Loading positions: 50 sample positions.
• Power supply: AC100–240V, 50/60Hz; 300 VA.
• Dimensions & weight: Main unit 725×665×700 mm / 60 kg; Accessories package example 950×500×580 mm / 27.6 kg.
• Reagent package examples: sizes and gross weights as provided.

Application notes

• Intended for clinical laboratories and diagnostic facilities requiring routine CBC with 5-part differential.
• Compatibility with LIS and HL7 enables integration into laboratory workflows.
• Refer to local regulations and ordering documentation for installation, warranty and consumables.
