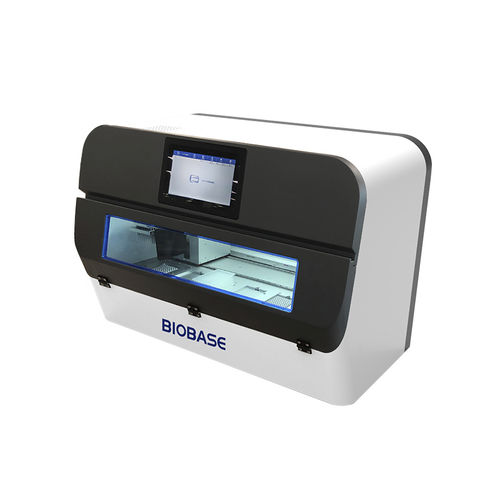

Research nucleic acid extractor BK-HS96

for medical researchfor clinical diagnosticfully automated

Overview
The BK-HS96 is an automated nucleic acid extraction system designed for high-throughput clinical and research workflows. It uses paramagnetic bead-based kits to process 96-well plates and delivers consistent extraction performance suitable for downstream molecular assays.

Key information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BK-HS96

Features

• 10.1-inch touchscreen with intuitive interface for laboratory operation.
• Accurate temperature control with rapid heating; active cooling to room temperature and short-term low-temperature sample holding.
• Integrated shaking and heating module enabling simultaneous mixing and heating to reduce extraction time.
• UV disinfection lamp, HEPA high-efficiency filter and safety door with instrument-suspend design to minimize aerosol cross-contamination.

Technical parameters

• Model: BK-HS96
• Nucleic acid extraction method: Paramagnetic particle method
• Sample capacity: 96-well
• Sample volume: 20–1000 μl
• Extraction time: 11–60 min
• Magnetic bead recovery: ≥98%
• Magnetic flux of bar: ≥4500 Gs
• Operating temperature: RT–105℃
• Shock (mixing) function: Yes
• Temperature accuracy: 0.1℃
• Sample protection: Power-on self-check, power-off protection, high-temperature alarm, over-temperature protection
• Disinfection method: UV light
• Safety door design: Instrument suspended when safety door is opened
• Operating system: Windows
• Scanning: Optional
• Storage: >1000
• Interface: USB
• Power supply: AC100–240V, 50Hz/60Hz
• Package size (W*D*H): 940*710*910 mm
• Gross weight: 110 kg
