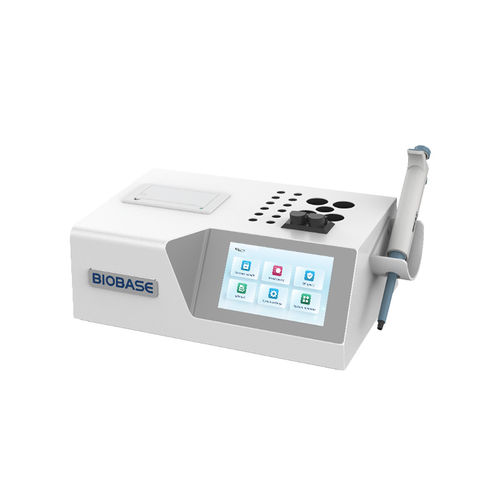

Automatic coagulation analyzer BK-CA02 BK-CA04

opticalfibrinogenAPTT

Introduction
The blood coagulation analyzer uses optical colorimetry to detect coagulation endpoints. When reagent is mixed with plasma, fibrinogen converts to fibrin and coagulates, causing a change in optical density that the instrument measures to determine clotting end point.

Application

• Designed to measure prothrombin time (PT), activated partial thromboplastin time (APTT), thrombin time (TT) and fibrinogen (FIB) in plasma.
• Intended for use in blood laboratories, clinical biochemistry labs and hospital laboratory settings.

Product information
Brand: BIOBASE
Origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BK-CA02 / BK-CA04

Features

• Independent dual- or quad-channel configurations (BK-CA02: 2 channels; BK-CA04: 4 channels) allowing simultaneous analysis of different assays.
• High-definition touchscreen (5-inch or 7-inch depending on variant) for intuitive operation.
• Open system with broad reagent compatibility.
• Result storage up to 200,000 records (some variants store 20,000); automatic data save on power-off.
• Multiple pre-warm/incubation positions to improve throughput.
• Built-in thermal printer and RS232 interface with LIS support.
• Automatic pipette trigger for measurement with timing accuracy to 0.1 s; reduced reagent consumption.

Technical specifications

• Model: BK-CA02 / BK-CA04
• Test principle: Optical colorimetry
• Test items: PT, APTT, TT, FIB
• Test channels: BK-CA02: 2 channels; BK-CA04: 4 channels
• Wavelength: 470 nm
• Detection time: Typical 20–40 s; adjustable 20–99 s
• Sample incubation positions: BK-CA02: 12; BK-CA04: 24
• Reagent incubation positions: BK-CA02: 5; BK-CA04: 6
• Detection/Incubation temperature: 37.0 ± 1.0 °C
• Incubation time: 1–999 s
• Reaction time: 1–99 s
• Minimum reagent dosage: 20 μl
• Sample volume: 20–40 μl
• Display: 7-inch high-definition color touchscreen
• Storage: Up to 200,000 results; autosave on power-off
• Communication: RS232 serial interface; LIS compatible
• Printer: Built-in thermal printer
• Power supply: AC 100–240 V, 50/60 Hz
• Power consumption: 70 VA
• Operating ambient: 10 °C–30 °C; relative humidity ≤ 80%; atmospheric pressure 86–106 kPa
• External dimensions (W×D×H): BK-CA02: 360 × 210 × 120 mm; BK-CA04: 390 × 250 × 135 mm
• Net weight: BK-CA02: 3.5 kg; BK-CA04: 4.96 kg
• Package size: BK-CA02: 376 × 246 × 316 mm; BK-CA04: 445 × 305 × 265 mm
• Gross weight: BK-CA02: 5 kg; BK-CA04: 7 kg
