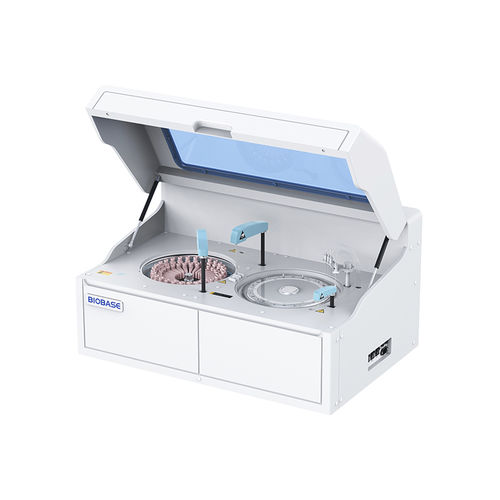

Automatic biochemistry analyzer BK-410

benchtopphotometricwith ISE

Overview
The BK-410 automatic chemistry analyzer by BIOBASE is designed for high-volume clinical and laboratory environments, delivering up to 400 tests/hour with continuous 24-hour operation options. It combines a high sample capacity with robust reagent management and advanced QC features to support reliable diagnostic workflows.

Key Information

• Brand: BIOBASE
• Product origin: CHINA
• Model: BK-410
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply

Features

• 49 sample positions for batch and STAT processing
• 56 reagent positions with 2–12℃ cooling
• 120 reusable reaction cuvettes with automatic washing
• Throughput: 400 tests/hour (ISE optional)
• Probe with anti-collision and liquid-level detection; automatic interior/exterior probe washing
• Optional open or closed system; continuous 24-hour operation

Technical Parameters
Model: BK-410
Throughput: 400 tests/hour, ISE (Optional)
Analysis methods: End-point, Fixed-time, Rate (Kinetic), Turbidimetry
Certificates: CE, FDA, ISO9001, ISO14001, ISO13485
Sample positions: 49
Reagent positions: 56 (cooled 2–12℃)
Sample volume: 2–70 μl
Reagent volume: 20–350 μl
Probe: Anti-collision, liquid-level detection, automatic wash
Reaction cuvettes: 120 reusable; automatic cuvette washing
Reaction temperature control: 37±0.2℃, real-time monitoring
Optical range: 340–800 nm (±1 nm); Absorbance: 0–3.5 Abs
Calibration: Linear (K-factor, 1/2/multi-point) and non-linear (spline, polygon, logit-4P/5P etc.)
QC: Real-time QC, Westgard multi-rule, cumulative sum check, twin plot (2D)
Software: Windows 7/8/10 (32/64 bit); LIS: bi-directional, HL7 support; Interface: LAN
Power: AC220V±10% 50/60Hz (standard); 110V±10% 60Hz (optional), 650VA
Working temp/humidity: 15–30℃ (±2℃) / 40–85% RH
Water consumption: Deionized water <11 L/h
Dimensions (W×D×H): 973×645×520 mm; Net weight: 96 kg; Package: 1120×780×1035 mm, Gross 141 kg

Specifications / Technical details

• Model: BK-410
• Throughput: 400 tests/hour
• Sample capacity: 49 positions
• Reagent capacity: 56 positions with cooling
• Reaction cuvettes: 120 reusable
• Sample volume range: 2–70 μl
• Reagent volume range: 20–350 μl
• Optical range: 340–800 nm (±1 nm); Abs: 0–3.5 Abs
• Reaction temp control: 37±0.2℃
• QC & calibration: Westgard, multi-point and non-linear methods
• Data & connectivity: Windows software; bi-directional LIS (HL7); LAN
• Power: AC220V±10% 50/60Hz (standard)
• Operating conditions: 15–30℃, 40–85% RH
• Dimensions & weight: 973×645×520 mm; 96 kg (net)
