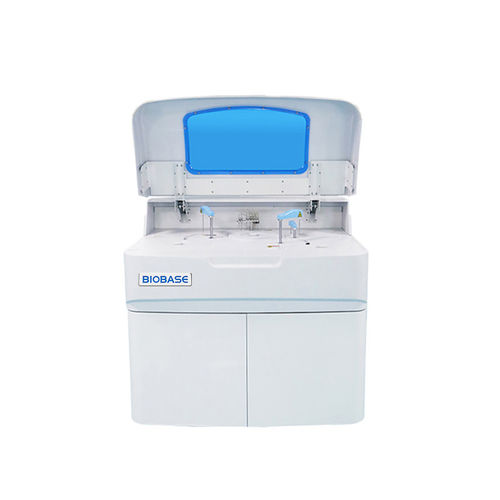

Automated biochemistry analyzer BK-400

floor-standingphotometricurine

Overview
Brand: BIOBASE
Product origin: CHINA
Lead time: Within 7 days
Supply capacity: Direct factory supply
Model: BK-400

Introduction
The BK-400 is an automated clinical chemistry analyzer designed for quantitative analysis of human serum, plasma, urine, cerebrospinal fluid and other biological samples. Intended for use in clinical and diagnostic laboratories. Do not use for other purposes.

Key features

• Throughput up to 400 tests per hour.
• 90 refrigerated reagent positions (2–8°C).
• 120 reusable reaction cuvettes (optical length 6 mm).
• Sample capacity: 60 positions standard (90 optional); built-in barcode system optional.
• Probe with Teflon coating, anti-collision and liquid-level detection.
• Automatic interior and exterior probe washing; automatic cuvette washing.
• Support for STAT samples and independent mixer probe.

Technical specifications

• Model: BK-400
• Throughput: 400 tests/hour
• Analysis methods: End-point, Fixed-time, Rate (kinetic), Turbidimetry
• Sample volume range: 1–70 μl
• Reagent volume range: 10–350 μl
• Reaction temperature control: 37 ± 0.1°C
• Wavelength range: 340–800 nm; Absorbance: 0–3.5 Abs
• Light source: 12V/20W halogen-tungsten lamp
• Reaction cuvettes: 120 reusable, optical length 6 mm
• Reagent positions: 90 refrigerated positions
• Sample positions: 60 (standard) / 90 (optional)
• Probe: Teflon coated; anti-collision; liquid level detection; automatic wash
• Water consumption: Deionized water <12 L/h
• Operating conditions: 15–30°C, humidity 40–85%
• Power supply: AC220V ±10% 50/60Hz; 110V ±10% 60Hz, 500W
• External size (W*D*H): 1170 × 775 × 1145 mm; Net weight: 190 kg

Certifications & connectivity

• Certifications: CE, FDA, ISO9001, ISO13485
• Software: Windows 7/8/10 (32/64 bit)
• LIS: Bidirectional, HL7 support
• Interface: TCP/IP network interface
• Printer: External optional, multiple reporting modes

Packaging & logistics

• Package size (W*D*H): 1358 × 935 × 1387 mm
• Gross weight: 255 kg
• Recommended handling: palletized, climate-controlled transport
