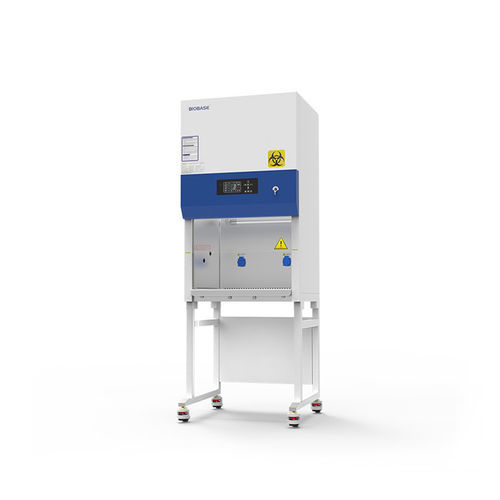

Type A2 microbiological safety cabinet BSC-700IIA2-Z

for clinical analysisfor biomedical researchfor research and development

Introduction
Biological safety cabinet designed for Class II A2 containment and operator/product protection. The unit uses negative pressure and HEPA/ULPA‑based air purification to limit aerosol release during laboratory procedures and is suitable for research, clinical testing and production in microbiology, genetic engineering and biological-product environments.

Product Overview

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BSC-700IIA2-Z

Key Features

• Compact footprint to save laboratory space.
• Centrifugal fan with adjustable speed; dual ULPA filtration.
• Motorized front window for single‑hand operation.
• Audio‑visual alarms for abnormal airflow, filter replacement, unsafe window height and high filter pressure.
• Time reserve function to store 30 minutes of start/sterilization delay after activation.
• Remote control operation up to 6 m to support safe emergency handling.
• Large LCD showing inflow/downflow velocity, filter pressures, UV and filter run times, temperature/humidity and filter life indicator.
• Memory function to retain settings after power failure.
• Interlock combinations: UV↔window, UV↔blower, LED↔blower, blower↔window.
• Low noise design (≤65 dB) compatible with clinical and research environments.

Technical Specifications

• Model: BSC-700IIA2-Z
• External size (W×D×H): 700×650×1920 mm (700×650×1280 mm without base stand)
• Internal size (W×D×H): 600×500×540 mm
• Tested opening (safety height): 200 mm; Max opening: 380 mm
• Inflow velocity: 0.53 ± 0.025 m/s; Downflow velocity: 0.33 ± 0.025 m/s
• Filtration: Two ULPA filters, 99.9995% efficiency at 0.12 μm; filter life indicator
• Front window: Motorized
• UV lamp: 15 W × 1 (253.7 nm), UV timer and life indicator
• LED lamp: 8 W × 2; Illumination: ≥1000 Lux
• Noise: ≤65 dB; Power consumption: ≤500 W
• Sockets: Two, total load 500 W
• Display & control: LCD display; control system 70% air recirculation / 30% exhaust; visual and audio alarms
• Materials: Work zone 304 stainless steel; Main body cold‑rolled steel with antibacterial powder coating
• Work surface height: 750 mm (with base stand)
• Power supply: AC220V 50/60Hz or 110V 60Hz
• Performance note: Suitable for routine microbiological work requiring Class II A2 containment

Accessories & Packaging

• Standard accessories: Cabinet ×1, LED lamp ×2, UV lamp ×2, Remote control, Drain valve ×1, Waterproof socket ×2, Foot switch
• Optional accessories: Water and gas tap, Electric height‑adjustable base stand, Armrest, Base stand ×1
• Packaging & weight: Package size without base stand 800×760×1470 mm; with base stand 800×900×1470 mm; Gross weight without base 130 kg; with base 154 kg
