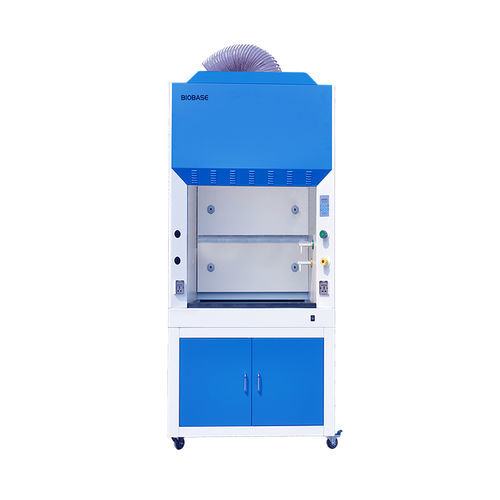

Exhaust fume hood FH1000(A)

containmentlaboratoryfloor-standing

Overview
Fume hood FH1000(A) is a ducted negative-pressure ventilation workstation designed to protect the operator and laboratory environment by directing room air inward through the front opening and exhausting contaminated air via a blower. Optional active carbon or HEPA filtration can be fitted before duct exhaust to reduce environmental discharge.

Product information

• Brand: BIOBASE
• Origin: CHINA
• Delivery time: Within 7 days
• Supply: Factory direct
• Models: FH1000(A), FH1200(A), FH1500(A), FH1800(A)

Features

• UV lamp (253.7 nm) for decontamination
• Resistant to weak acids and alkalis
• Adjustable air speed: 9 levels (0.3–0.8 m/s)
• Motorized, height-adjustable front sash (5 mm toughened glass)
• Microprocessor control with LED display and memory function on power failure
• Built-in centrifugal blower with adjustable speed

Technical parameters
Model: FH1000(A) | FH1200(A) | FH1500(A) | FH1800(A)
External size (W*D*H): 1040*800*2200 mm | 1240*800*2200 mm | 1540*800*2200 mm | 1840*800*2200 mm
Internal size (W*D*H): 820*670*730 mm | 1020*670*730 mm | 1320*670*730 mm | 1620*670*730 mm
Work surface height: 850 mm
Max opening: 520 mm
Air velocity: 0.3–0.8 m/s
Exhaust air volume: 590 m³/h | 730 m³/h | 950 m³/h | 1170 m³/h
Noise: ≤68 dB
Exhaust duct: PVC, standard length 5 m, Φ300 mm
LED lamp: 8W | 12W | 16W
UV lamp: 253.7 nm emission
Power supply: AC220±10% 50/60Hz or 110V±10% 60Hz
Power consumption: 400 W | 400 W | 500 W | 500 W
Exterior material: Cold-rolled steel with antibacterial powder coating
Interior material: Compact laminate board, acid/alkali resistant
Work surface: Chemical resistant phenolic resin
Gross weight: 286 kg | 317 kg | 350 kg | 400 kg

Accessories & options

• Standard: UV lamp*2, LED lamp, water tap, gas tap, sink, base cabinet, 2 waterproof sockets (total load 500W), 5 m PVC exhaust duct, pipe straps*2
• Optional: Active carbon filter, HEPA filter
