Type A2 microbiological safety cabinet Pro series

for clinical analysismicrobiologylaboratory

Overview

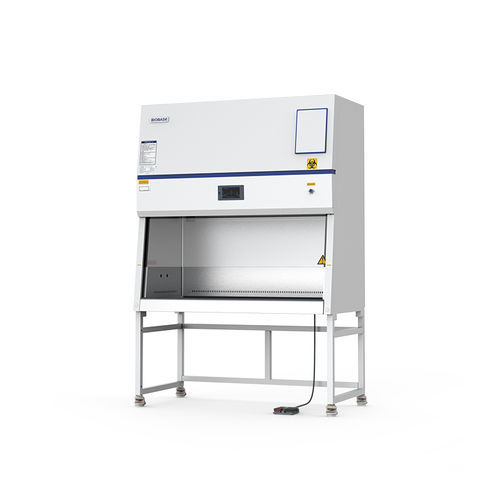

This Class II A2 biosafety cabinet (Pro Series) provides a negative‑pressure, box‑type air‑purification environment for containment of aerosols and protection of personnel, product and environment. Designed for laboratory, clinical testing and production use in microbiology, genetic engineering and biological product workflows, it meets typical requirements for a first‑line biosafety barrier.

Key Details
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BSC-1100IIA2‑Pro, BSC-1300IIA2‑Pro, BSC-1500IIA2‑Pro, BSC-1800IIA2‑Pro
Primary use: Laboratory containment for research, teaching, clinical testing and production

Features

• 7-inch color touchscreen: clear, dynamic display of cabinet status with scheduling/timer functions.
• Automatic airflow adjustment and wind‑speed self‑compensation (optional sensor control).
• Power‑failure memory: restores pre‑failure state with visual prompts and alarms on restart.
• Integrated work zone design for easy disassembly and cleaning; one‑piece hand rest for improved comfort.
• Separate cabinet and adjustable base; height customization available (manual or electric options).
• Interlock functions between UV lamp, front window, fan and LED lighting to ensure safe operation.
• Programmable timer: schedule start/stop and run times for UV lamps, fans and sockets.
• Motorized laminated front window with one‑key lift and double‑trigger safety signals for UV sterilization.
• Negative‑pressure air duct with foreign‑matter filter to protect the fan and airflow system.
• Dual ULPA filtration with filter‑life indicator (99.9995% @ 0.12 μm) and visual/audio alarms for abnormal conditions.
• LED illumination and selectable UV lamp configurations (model dependent) for effective decontamination and working light ≥1000 Lux.

Technical Parameters
Model | BSC-1100IIA2‑Pro | BSC-1300IIA2‑Pro | BSC-1500IIA2‑Pro | BSC-1800IIA2‑Pro
External Size (W*D*H) | 1100*750*2210mm | 1385*750*2310mm | 1500*760*2160mm | 1875*780*2310mm
Internal Size (W*D*H) | 940*600*655mm | 1210*600*660mm | 1400*600*660mm | 1700*600*660mm
Tested Opening | Safety height 200mm (8")
Max Opening | 420mm (17") | 500mm (20") | 460mm (18") | 520mm (21")
Inflow Velocity | 0.53±0.025 m/s (all models)
Downflow Velocity | 0.33±0.025 m/s (all models)
ULPA Filter | Two, 99.9995% efficiency @ 0.12 μm; filter life indicator
Front Window | Motorized, two‑layer laminated toughened glass ≥6mm, anti‑UV
Noise | ≤ 67 dB
UV Lamp | 30W×1 (1100/1300); 40W×1 (1500/1800). UV timer and life indicator; emission 253.7 nm
Illuminating Lamp | LED (12W×2 or 16W×2 depending on model); Illumination ≥1000 Lux
Power Consumption | 600W (1100) | 800W (1300/1500) | 1300W (1800)
Waterproof Sockets | Two; total load 500W
Display | 7" touch screen: filter pressures, filter/UV runtime, inflow/downflow velocity, filter life, humidity/temperature, system runtime
Control System | Microprocessor
Airflow System | 70% recirculation / 30% exhaust
Alarm | Visual/audio for abnormal airflow, filter replacement, front window unsafe height, high filter pressure
Material | Work zone: 304 stainless steel; Main body: cold‑rolled steel with antibacterial powder coating
Work Surface Height | 750 mm (customizable)
Caster | Footmaster caster
Power Supply | AC220V ±10% 50/60Hz; 110V ±10% 60Hz
Standard Accessories | LED lamp*2, UV lamp*2, base stand, remote control, foot switch, drain valve, waterproof sockets*2; RS485 data transfer for monitoring/export
Optional Accessories | Water/gas tap, electric height adjustable base, armrest, chair, wind‑speed auto adjustment, APP remote control, LED dimming, manual/electric front window lift, EC fan
Package Size (W*D*H) | 1250*980*1765mm | 1530*1025*1895mm | 1640*980*1825mm | 2000*1040*1895mm
Gross Weight | 265 kg | 340 kg | 363 kg | 430 kg

Specifications (summary)

• Series: Pro Series (Class II A2 biological safety cabinets)
• Models: BSC-1100IIA2‑Pro, BSC-1300IIA2‑Pro, BSC-1500IIA2‑Pro, BSC-1800IIA2‑Pro
• Airflow: Inflow 0.53±0.025 m/s; Downflow 0.33±0.025 m/s
• Filtration: Dual ULPA filters, 99.9995% @ 0.12 μm with life indicator
• Control: 7" touch display, microprocessor control, visual & audio alarms
• Materials: Work zone 304 stainless steel; main body antibacterial powder coated steel
• Power: AC220V±10% 50/60Hz or 110V±10% 60Hz; multiple standard and optional accessories available
