Inspection clean bench BKCB-V1300D

laboratoryfor tissue cultureaseptic

Introduction
Brand: BIOBASE; Model: BKCB-V1300D; Origin: CHINA; Delivery: within 7 days; Supply: factory direct.

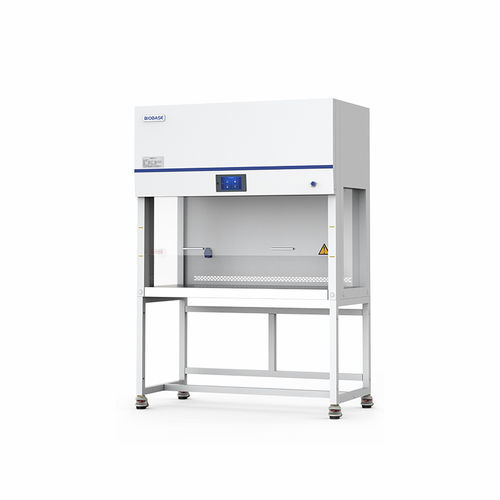

BIOBASE BKCB-V1300D Vertical Laminar Flow Cabinet provides a clean, sterile workspace for sensitive laboratory operations. With vertical airflow and HEPA H14 filtration, it prevents ambient contamination and protects samples. Suitable for microbiology, electronics, tissue culture and general laboratory tasks.

Key features

• Vertical-flow cabinet design offering a wide ergonomic working view.
• Robust cold-rolled steel cabinet with welded structure and electrostatic surface coating for long-term stability.
• Pre-filter for coarse particle removal to extend HEPA filter life.
• Work surface in 304 stainless steel: corrosion-resistant and easy to clean.
• Positive-pressure surround on four sides (left, right, rear, bottom) to protect products.
• Front and side panels in 5 mm toughened glass for operator safety and good lighting.
• Front window height adjustable — motorized with height control (counterweight/manual option available).
• Integrated base frame with casters for safe mobility, fixation and leveling.
• 7-inch color touch screen showing airflow, velocity, run times, UV time, HEPA runtime/resistance, temperature/humidity and clock.
• Programmable start/stop and UV disinfection timing; one-touch disinfection function for rapid decontamination.
• Comprehensive alarms and safety interlocks: front window height alarm, high filter pressure alarm, filter replacement alarm; blower/door and UV interlocks to prevent misuse.

Technical parameters

• Model: BKCB-V1300D
• Flow mode: Vertical
• Users: 1–2
• Rated power: 900 VA (including 500 VA socket load in work area)
• Airflow velocity: 0.2–0.45 m/s
• Noise: ≤65 dB(A)
• Illumination: ≥300 lx
• Vibration: ≤5 μm (rms)
• Safety (colonies): ≤0.5 CFU/30 min
• Clean grade: ISO 5 (Class 100)
• Filtration: HEPA (H14), ≥99.995% at 0.3 μm
• Front window safety height: 200 mm; Max opening: 350 mm
• Work surface height: 750 mm (customizable)
• Power supply: AC220V±10% 50Hz (standard); AC110V±10% 60Hz (optional)
• Net weight: 228 kg; Gross weight: 292 kg
• External size (W×D×H): 1300×675×1860 mm; Internal size (W×D×H): 1200×515×650 mm; Package size: 1450×840×1420 mm

Accessories & options

• Standard: LED lamp ×2, UV lamp ×2, base stand, waterproof socket ×2.
• Optional: Armrest ×2, custom power configurations, other accessories on request.

Applications

• Microbiology and sterile manipulation
• Electronics assembly and inspection
• Tissue culture and sample preparation
• General laboratory tasks requiring ISO 5 clean environment
