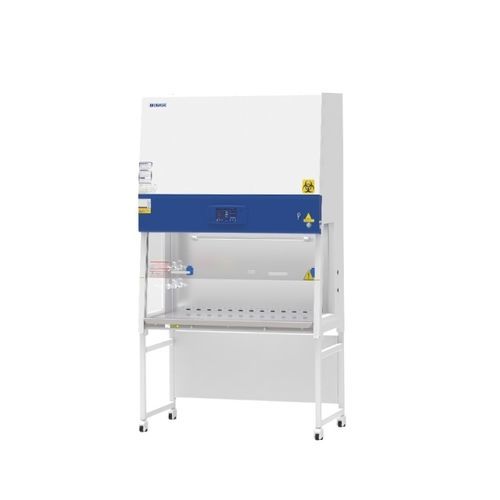

Type A2 microbiological safety cabinet BSC series

containmentmedicallaboratory

Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BSC-4FA2, BSC-3FA2-GL, BSC-3FA2-NA, BSC-4FA2-GL, BSC-4FA2-NA, BSC-6FA2-GL, BSC-6FA2-NA

Introduction
The NSF Certified Class II Type A2 biosafety cabinet provides operator, product and environmental protection for work with moderate-risk biological agents in medical and laboratory environments. It is suitable for procedures requiring containment, HEPA filtration and controlled airflow.

Features

• Motorized front window with adjustable maximum opening and safety interlocks (UV/window/fan).
• 7-inch color touch display for real-time values, dynamic airflow diagram and audible/visual alarms.
• Power-on password and power-failure memory to restore previous operating state on restart.
• EC motor with automatic wind-speed adjustment and selectable speed control.
• Two HEPA filters, 99.995% efficiency @ 0.12 μm, with filter life indicator.
• Integrated 304 stainless steel work area for easy disassembly and cleaning; cold-rolled steel frame with antibacterial powder coating.
• Separate adjustable base; waterproof sockets, water and gas taps, remote control and IV bar available.
• Scheduling function for automatic start/stop and timed operation of UV lamps, fan and sockets.
• Alarm functions for abnormal airflow, filter replacement, unsafe front window height and high filter pressure.

Standard accessories (selected)

• LED lamp ×2; UV lamp ×2; base stand; stainless steel water tap ×1; stainless steel gas tap ×1; drain valve; waterproof sockets ×2; stainless steel IV bar with 10 hooks; remote control

Optional accessories (selected)

• Armrest; airflow tester; formalin fumigation sterilizer; infrared sterilizer; electric height-adjustable base stand

Technical parameters (by model)
Models: BSC-4FA2 | BSC-3FA2-GL / BSC-3FA2-NA | BSC-4FA2-GL / BSC-4FA2-NA | BSC-6FA2-GL / BSC-6FA2-NA
External size (W*D*H): 1383*775*2220 mm | 1087*775*2220 mm | 1383*775*2220 mm | 1873*775*2240 mm
Internal size (W*D*H): 1210*600*660 mm | 910*600*660 mm | 1210*600*660 mm | 1700*600*660 mm
Work surface height: 762 mm | 762 mm | 762 mm | 782 mm
Max opening: 470 mm; Safety tested opening: 200 mm or 254 mm depending on model
Airflow volume (m³/h): Inflow: 462 | 445 | 587 | 824; Downflow (65%/60%): 863 | 649 | 863 | 1212; Exhaust: 462 | 445 | 587 | 824
Noise: ≤67 dB (NSF 49). Illumination: ≥1000 Lux (LED).
Power supply: AC230V 50/60Hz or AC115V 60Hz; full load 9A. Power consumption: 400W–700W depending on model.
Material: Work area 304 stainless steel; frame and panels cold-rolled steel with antibacterial powder coating.
UV lamp: germicidal emission 253.7 nm; power varies by model.
Package size and gross weight vary by model (see model data).

Notes
Designed to protect personnel, samples and the environment when handling moderate-risk biological agents. NSF certification is indicated where applicable. Confirm local electrical requirements and specific accessory availability with the supplier.

Technical specifications (summary)

• Brand: BIOBASE
• Available models: BSC-4FA2; BSC-3FA2-GL; BSC-3FA2-NA; BSC-4FA2-GL; BSC-4FA2-NA; BSC-6FA2-GL; BSC-6FA2-NA
• HEPA filtration: 99.995% @ 0.12 μm (two filters)
• Display: 7" color touch screen
• Noise level: ≤67 dB (NSF 49)
• Illumination: ≥1000 Lux (LED)
• Power: AC230V/AC115V; full load amps: 9A
• Power consumption: 400W–700W (model dependent)
• Material: Work area 304 stainless steel
• Interlocks & alarms: UV/window/fan interlocks; airflow and filter alarms
• Delivery: Within 7 days; factory direct supply
