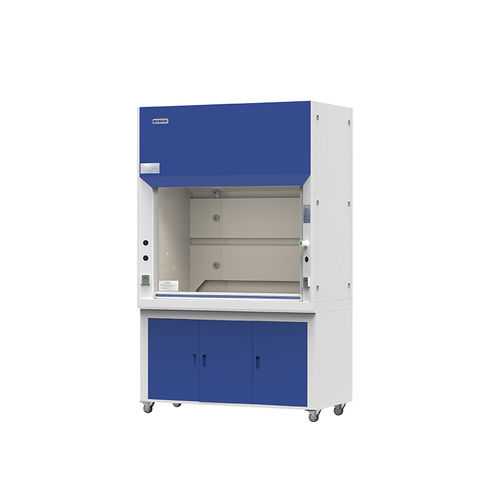

Exhaust fume hood FH1000(E)

total exhaustfor biological hazardsfor research laboratories

Overview
The laboratory fume hood is designed to protect operators and the laboratory environment from infectious aerosols and toxic gases generated during experiments. Models: FH1000(E) / FH1200(E) / FH1500(E) / FH1800(E). Suitable for chemical, biological and research laboratories.

Key features

• Adjustable air speed: 9 levels; air velocity range 0.3–0.8 m/s.
• Microprocessor control with LED display and memory function for power failure.
• Manual front window: 5 mm toughened glass, height adjustable (max opening 750 mm).
• Built-in PP centrifugal blower; low noise (≤68 dB) and straightforward installation.
• Construction resistant to moderate acids and alkalis.
• Work surface height: 900 mm; worktop material: chemical-resistant phenolic resin.
• LED lighting: 20W (smaller models) or 40W (larger models).

Technical specifications
Model / External (W×D×H) / Internal (W×D×H) / System exhaust / Power consumption / Gross weight:
FH1000(E): 1000×800×2515 mm / 790×600×870 mm / 570 m³/h / 400 W / 270 kg;
FH1200(E): 1200×800×2515 mm / 990×600×870 mm / 710 m³/h / 400 W / 305 kg;
FH1500(E): 1500×800×2515 mm / 1290×600×870 mm / 930 m³/h / 500 W / 335 kg;
FH1800(E): 1800×800×2515 mm / 1590×600×870 mm / 1140 m³/h / 500 W / 365 kg;
Exhaust duct: PVC, standard length 5 m, Φ300 mm; pipe straps: 2 pcs; Noise ≤68 dB; Power supply: 220 V ±10% (50/60 Hz) or 110 V ±10% (60 Hz).

Accessories

• Standard: PP water sink; base cabinet; water tap; 2 waterproof sockets (total load 500 W); 5 m exhaust duct (φ300 mm).
• Optional: air supply flow control valve; gas faucet.

Ordering and supply
Brand: BIOBASE. Origin: CHINA. Delivery time: within 7 days. Supply: factory direct. For voltage requirements, accessories or installation details contact the supplier.
