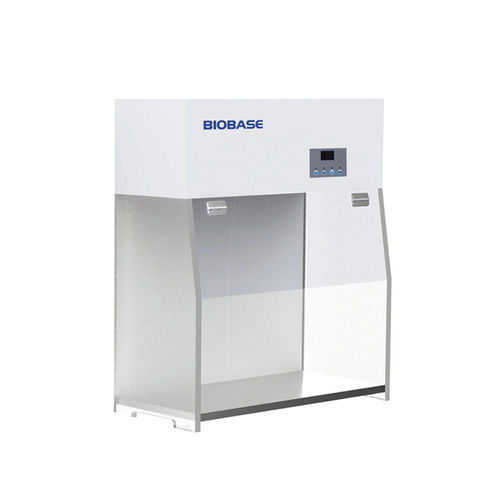

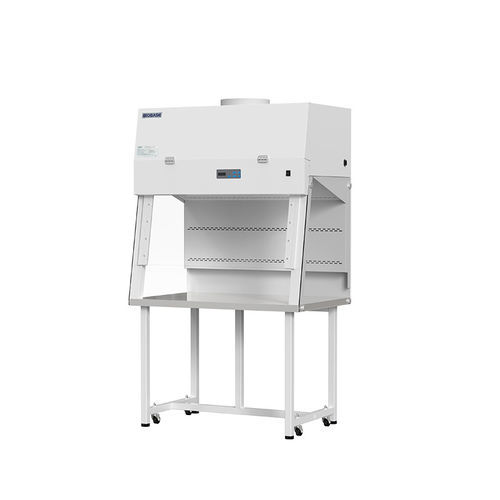

Class I microbiological safety cabinet BYKG series

containmentmedicallaboratory

Introduction
The Class I biological safety cabinet provides operator and environmental protection against aerosol hazards by using a negative‑pressure front inlet and HEPA‑filtered exhaust. Its compact, portable design allows flexible placement in clinical and laboratory settings.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BYKG-I, BYKG-II, BYKG-III, BYKG-V

Features

• Negative‑pressure front inlet with HEPA‑filtered exhaust for aerosol containment.
• UV lamp for surface decontamination (253.7 nm); BYKG-III includes UV timer and life display.
• Soft‑touch control panel and LCD display (BYKG-III).
• One‑piece 304 stainless steel work surface for easy cleaning and chemical resistance.
• Stable airflow system designed to protect operator and environment.
• Optional electric height‑adjustable base stand; BYKG-V available with universal casters.

Technical Parameters (table rows)
Model: BYKG-I | BYKG-II | BYKG-III | BYKG-V
External Size (W*D*H): 550*395*730 mm | 700*550*900 mm | 900*713*1250 mm | 1100*697*1900 mm
Internal Size (W*D*H): 540*385*440 mm | 680*540*500 mm | 800*635*600 mm | 968*625*630 mm
HEPA Filter: 99.995% efficiency at 0.3 μm (all models)
Airflow Velocity: >0.3 m/s | 0.75–1.0 m/s | >0.3 m/s | 0.75–1.0 m/s
Noise: ≤60 dB | ≤55 dB | ≤60 dB | ≤67 dB
Illuminating Lamp: 4W*1 LED | 8W*1 LED | 8W*1 LED | 12W*2 Fluorescent
UV Lamp: 15W*1 | 20W*1 | 20W*1 | 20W*1 (253.7 nm emission)
Power Consumption: 150W | 160W | 400W | 350W
Work Surface Height: / | / | / | 750 mm (BYKG-V)
Caster: / | / | / | Universal caster (BYKG-V)
Main Body Construction: PMMA (BYKG-I/II) | Cold‑rolled steel with antibacterial powder coating and tempered glass (BYKG-III/V)
Work Table: 304 stainless steel (all models)
Power Supply: AC220V±10% 50/60Hz; 110V±10% 60Hz (all models)
Standard Accessory: LED lamp, UV lamp(s); BYKG-V: fluorescent lamp, UV lamps, base stand
Optional Accessory: Electric height adjustable base stand
Gross Weight: 38 kg | 68 kg | 147 kg | 185 kg
Package Size (W*D*H): 710*550*950 mm | 870*720*1170 mm | 1060*870*1440 mm | 1260*860*2080 mm

Technical specifications

• Series / Models: BYKG series (BYKG-I, BYKG-II, BYKG-III, BYKG-V)
• HEPA efficiency: 99.995% at 0.3 μm
• Airflow settings: nominal >0.3 m/s; select models 0.75–1.0 m/s
• Noise levels vary by model (≤55–67 dB)
• UV sterilization wavelength: 253.7 nm; BYKG-III includes timer and life display
• Work surface: one‑piece 304 stainless steel for hygiene and cleaning
• Body materials: PMMA for smaller units; cold‑rolled steel with antibacterial powder coating and tempered glass for larger units
• Power: AC220V±10% 50/60Hz or 110V±10% 60Hz
• Power consumption by model: 150W, 160W, 400W, 350W
• Accessories: LED/fluorescent lamps, UV lamps, base stand; optional electric height‑adjustable base
• Applications: containment of aerosols in clinical and laboratory workflows to protect operator and environment
