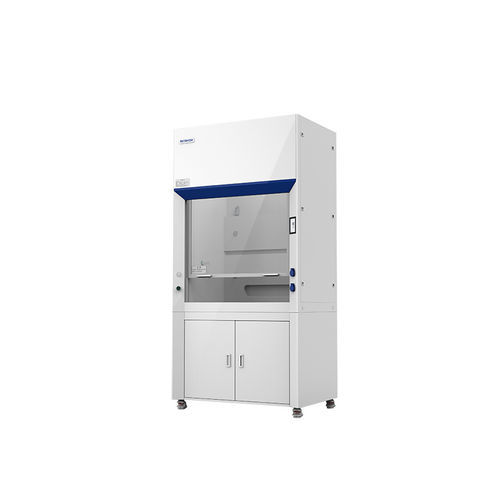

Chemical fume hood BK-FH series

exhaustlaboratoryfor hazardous materials

Introduction
The Ducted Fume Hood BK-FH1200E / BK-FH1500E is a laboratory exhaust unit designed to capture and vent hazardous fumes, vapours and particles to an external extraction system, providing a controlled workspace for chemical and industrial operations.

Product Overview

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BK-FH1200E / BK-FH1500E

Key Features

• Vertical front cabinet design for wide operational view and ergonomic access
• Cold-rolled steel cabinet with electrostatic surface coating
• Integrated physical-chemical worktop panel: corrosion-resistant and removable for cleaning
• 5 mm tempered glass front sash with counterweight; height adjustable, max opening 500 mm
• Large base cabinet for storage with electrostatic finish
• Wall-mounted water tap, flow control valve and laboratory sink included
• PP centrifugal exhaust fan: high airflow, low noise, easy installation
• 5-inch LCD touch screen to display operating status
• LED lighting (12W), waterproof sockets ×2, temperature & humidity sensor
• Side lifting handles for safe on-site handling

Technical Specifications
Model: BK-FH1200E / BK-FH1500E
Number of users: 1–2
Rated power: 300W (BK-FH1200E) / 320W (BK-FH1500E)
Power supply: 220V±10%, 50Hz (standard); 110V±10%, 60Hz (optional)
Exhaust volume: 2300 m³/h
Air velocity: 0.3–0.8 m/s
Noise: ≤65 dB(A)
LED lamp: 12W
Max sash opening: 500 mm
Tabletop height: 920 mm
Net weight: 181 kg / 238 kg
External size (W×D×H): 1200×800×2550 mm / 1500×800×2550 mm
Internal size (W×D×H): 990×605×900 mm / 1290×605×900 mm
Standard accessories: LED lamp ×1, waterproof socket ×2, temperature & humidity sensor, water tap, water flow control valve
Optional accessories: Armrest ×2, gas supply tap, gas flow control valve
