Laboratory centrifuge M 815 E

for biologyclinicalfor molecular biology

Technical properties
Capacity | 8 x 15 ml
Rotor type | Fixed-angle rotor 35° (vertical)
Speed control | Continuous (no step adjusting)
Max speed | 5000 rpm
Max RCF | 2515 × g
Fuse | 1 A
Power rating | 100 W
Safety | Lid safety switch; rotor-stop sensor activated on cover opening
Rotor material | Polycarbonate
Tube carriers | ABS hard plastic
Housing | Carbon steel with electrostatic powder coating & ABS
Power supply | AC 190–240 V / 50–60 Hz
Dimensions (W × D × H) | 22 × 24 × 28 cm
Net weight | 5.5 kg
Gross weight | 6 kg

Product information

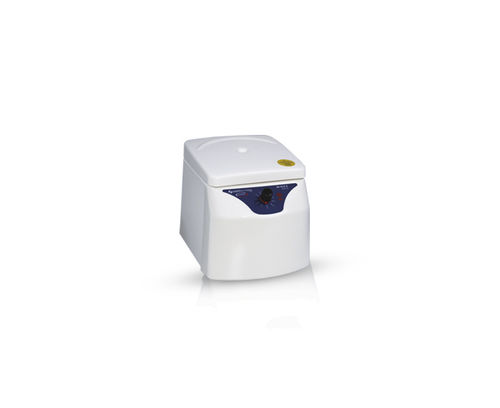

The Elektro-mag M 815 E is an economy-class laboratory centrifuge with a fixed-angle rotor designed for 8 x 15 ml tubes. It operates up to 5000 rpm (max. 2515 × g). The rotating head is polycarbonate and tube carriers are ABS hard plastic. The unit belongs to the E model range and requires pressing the stop button to stop operation; a rotor-stop sensor slows and stops rotation when the lid is opened as a safety measure.

What is a laboratory centrifuge?
A laboratory centrifuge separates components of different densities by applying centrifugal force. Samples in tubes are placed in a rotor that spins at high speed; denser particles move toward the tube wall to form a pellet while lighter components remain in the supernatant.

Where laboratory centrifuges are used?
They are used in clinical, hospital and research laboratories for blood processing, cell separation, sample preparation for molecular biology, protein and virus research, and routine diagnostic workflows.

Advantages of the Elektro-mag laboratory centrifuge

• Lower acquisition cost for budget-conscious laboratories
• Reliable basic performance for routine separations
• Simple operation and maintenance
• Configurable options depending on workflow needs
• Integrated safety systems: lid switch and rotor-stop sensor

Technical specifications

• Capacity: 8 x 15 ml
• Rotor type: Fixed-angle 35° (vertical)
• Speed control: Continuous (no step adjusting)
• Max speed: 5000 rpm
• Max RCF: 2515 × g
• Fuse: 1 A
• Power rating: 100 W
• Safety: Lid safety switch; rotor-stop sensor (cover opening)
• Rotor material: Polycarbonate
• Tube carriers: ABS hard plastic
• Housing: Carbon steel with electrostatic powder coating & ABS
• Power supply: AC 190–240 V / 50–60 Hz
• Dimensions (W × D × H): 22 × 24 × 28 cm
• Net weight: 5.5 kg
• Gross weight: 6 kg
