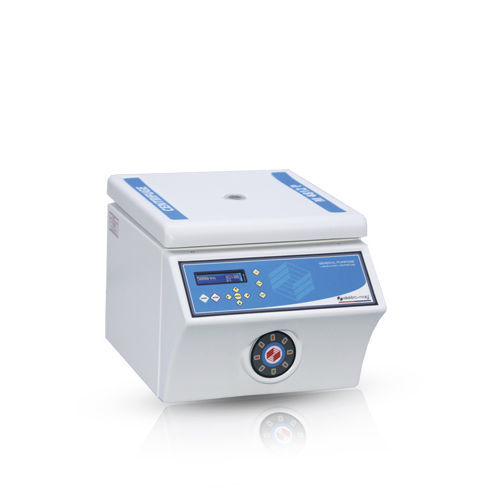

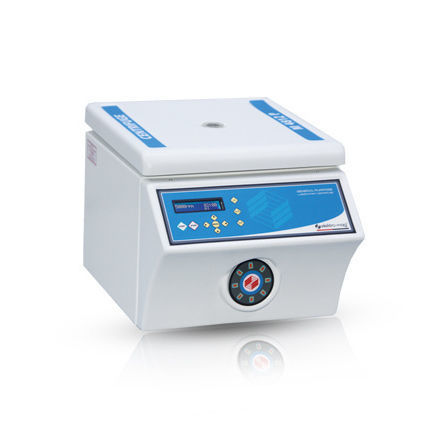

Laboratory centrifuge M 815 P

multifunctionbloodbenchtop

Product Overview
Elektro-mag M 815 P laboratory centrifuge features a 35° fixed-angle rotor with capacity for 8 x 15 ml tubes. It offers PID microprocessor control with a digital display, 10 programmable programs, adjustable speed from 500 to 5000 rpm and a maximum RCF of 2515 x g. The unit is driven by a brushless (maintenance-free) motor and is constructed with electrostatically coated carbon steel, stainless steel casing components and ABS parts. Safety features include a lid safety switch and an automatic lid lock to prevent opening during operation.

Technical Properties (table)
Technical Property — Technical Data
Capacity: 8 x 15 ml
Rotor Type: 35° fixed-angle (vertical)
Speed Control: PID digital microprocessor control
Control Panel: Speed, RCF & Timer
Max. Speed: 5000 rpm
Max. RCF: 2515 x g
Speed Setting Increment: 10 rpm
Speed Setting Range: 500-5000 rpm
Timer Start: When the set speed is achieved
Time Interval: 1-99 min
Continuous Running Mode: Available
Setting Centrifugal Force: Available
Short Running Period: Via pulse button
Number of Programs: 10
Fuse: 1 A
Power Rating: 350 W
Safety: Lid safety switch
Lid Lock: Available (prevents opening during operation)
Speed Display: Available
Rotor Material: Polycarbonate
Motor Type: Brushless (maintenance-free)
Tube Nest Material: ABS
Outer Case Material: Carbon steel with electrostatic powder paint & ABS
Casing Material: Stainless steel
Power Supply: AC 190-240 V / 50-60 Hz
Dimensions (W x H x D): 29 x 25 x 36 cm
Net Weight: 9 kg
Gross Weight: 10 kg

Advantages

• Low initial investment cost
• Technical precision and programmability
• Multiple operating modes adapted to process needs
• User-friendly interface
• Integrated safety systems

Product Details
The M 815 P is part of Elektro-mag's P-series centrifuges and integrates PID control with microprocessor-managed programs for precise timing and speed control. Program features include timed start, interval operation and short-run (pulse) modes for controlled centrifugation. Construction emphasizes long service life with electrostatically coated steel, stainless steel casing components and durable plastics for internal parts.

Technical specifications

• Model: M 815 P
• Capacity: 8 x 15 ml
• Rotor: 35° fixed-angle (polycarbonate)
• Speed range: 500–5000 rpm (10 rpm increment)
• Maximum RCF: 2515 x g
• Number of programs: 10 (microprocessor-controlled)
• Control: PID digital microprocessor; display for speed/RCF/timer
• Motor: Brushless (maintenance-free)
• Power: 350 W; Supply: AC 190-240 V, 50-60 Hz
• Materials: Rotor polycarbonate; tube nests ABS; outer case carbon steel with electrostatic powder paint & ABS; casing stainless steel
• Dimensions (W x H x D): 29 x 25 x 36 cm
• Net weight: 9 kg; Gross weight: 10 kg
• Safety: Lid safety switch and automatic lid lock
