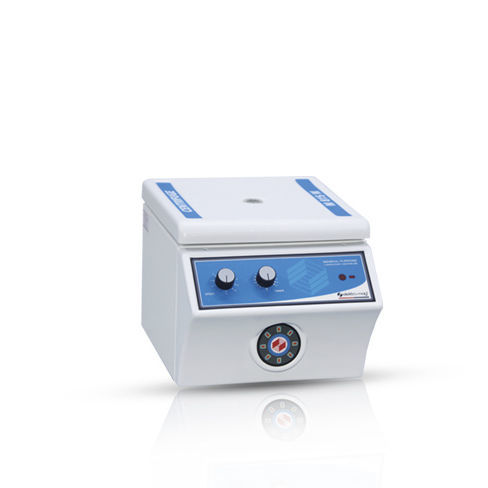

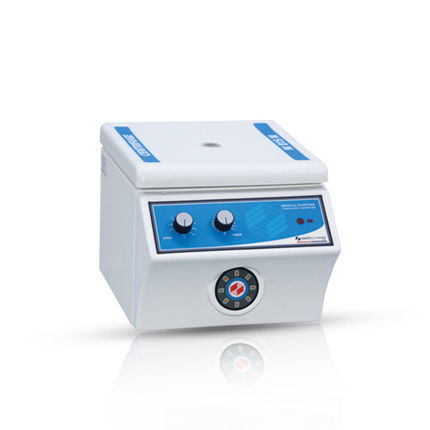

Laboratory centrifuge M 415 M

for biologyfor hematologyfor general purposes

Product overview
Elektro-mag M 415 M laboratory centrifuge is an economy-class fixed-angle rotor unit designed to process up to 4 x 15 ml tubes. It operates up to 5000 rpm with a maximum relative centrifugal force (RCF) of 2515 x g. The rotor is polycarbonate and tube nests are ABS hard plastic. Safety features include a lid safety switch and closure lock. Timer range is 1–15 minutes; speed control is continuous. The drive uses a universal motor.

Key features

• Capacity: 4 x 15 ml tubes
• Rotor type: 35° fixed-angle (vertical)
• Maximum speed: 5000 rpm
• Maximum RCF: 2515 x g
• Timer: 1–15 min (automatic stop)
• Motor: Universal motor
• Rotor material: Polycarbonate
• Tube nests: ABS hard plastic
• Safety: Lid safety switch and closure lock

Technical properties

• Model — M 415 M
• Capacity — 4 x 15 ml
• Rotor type — Vertical 35° fixed-angle
• Speed control — Continuous (no step adjustment)
• Max. speed — 5000 rpm
• Max. RCF — 2515 x g
• Timer — 1–15 min
• Fuse — 1 A
• Power rating — 100 W
• Power supply — AC 190–240 V / 50–60 Hz
• Safety — Lid safety switch
• Closure lock — Yes
• Rotor material — Polycarbonate
• Tube nesting (gobets) — ABS (hard plastic)
• Outer case — Carbon steel with electrostatic powder paint & ABS
• Dimensions (WxDxH) — 29 x 36 x 25 cm
• Net weight — 9 kg
• Gross weight — 10 kg

Additional product information
The M 415 M combines an economy-class design with practical laboratory functions: continuous speed control up to 5000 rpm, timer-controlled automatic stop and a secure lid locking mechanism that prevents opening while the rotor is running. Components in contact with samples are made of polycarbonate and ABS for chemical resistance and durability.

Applications
Suitable for routine separations in biological and chemical laboratories: blood processing, cell and molecular analysis, purification of cells and subcellular fractions, isolation of viruses, proteins and nucleic acids. Ideal for small-batch sample preparation and educational laboratory use.

Advantages

• Economy-class model for basic laboratory workflows
• Simple continuous speed control for flexible operation
• Timer with automatic stop for repeatable runs
• Safety features: lid safety switch and closure lock
• Durable rotor and tube nests: polycarbonate and ABS

Specifications

• Model: M 415 M
• Capacity: 4 x 15 ml
• Rotor: Vertical 35° fixed-angle, polycarbonate
• Tube nests: ABS hard plastic
• Speed control: continuous
• Max speed: 5000 rpm
• Max RCF: 2515 x g
• Timer: 1–15 minutes (auto stop)
• Power rating: 100 W
• Power supply: AC 190–240 V, 50–60 Hz
• Fuse: 1 A
• Safety: lid safety switch and closure lock
• Outer case: carbon steel with electrostatic powder paint & ABS
• Dimensions (WxDxH): 29 x 36 x 25 cm
• Net weight: 9 kg; Gross weight: 10 kg
