Laboratory microcentrifuge M 4800 M

clinicalindustrialfor research

Product

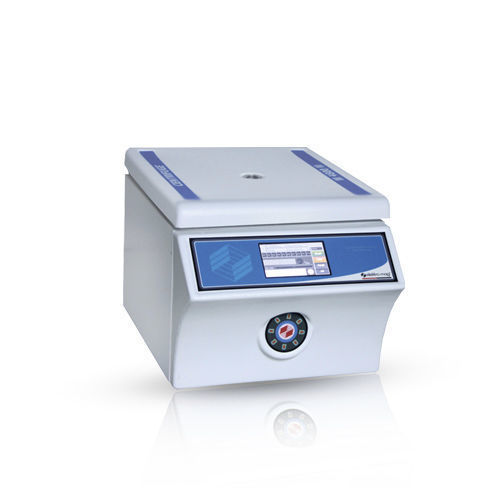

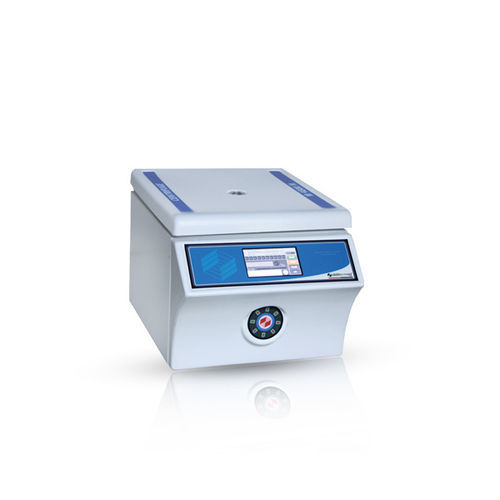

M 4800 M microcentrifuge with fixed-angle rotor, brushless maintenance-free motor and RCF display. Capacity for 24 x 1.5 ml / 2 ml tubes; intuitive 4.3-inch touchscreen and PID speed control.

Key features

• Fixed-angle rotor design for efficient pelleting
• Brushless (maintenance-free) motor
• RCF display with PID control for precise force setting
• 4.3-inch touchscreen for operation and parameter setting
• Capacity: 24 x 1.5 ml / 2 ml tubes
• Maximum speed: up to 14,000 rpm (Max. RCF: 19,612 x g)
• Timer, short-run pulse and 10 program memory
• Safety: lid safety switch and lid lock to prevent opening during operation

Technical data

• Capacity: 24 x 1.5 ml/2 ml
• Max. speed: 14,000 rpm
• Max. RCF: 19,612 x g
• Speed setting range: 500–14,000 rpm
• Speed setting increment: 10 rpm
• Acceleration & deceleration time: 20–150 s
• Timer: 1–99 min
• Continuous running mode: available
• RCF setting: available
• Short running period: via pulse button
• Number of programs: 10
• Observation glass: available
• Fuse: 6 A
• Power rating: 350 W
• Safety: lid safety switch
• Lid lock: available (prevents opening during operation)
• Rotor material: acetal resin
• Motor type: brushless / maintenance-free
• Casing material: carbon steel with electrostatic powder paint & ABS
• Inner chamber material: stainless steel
• Power supply: AC 190–240 V / 50–60 Hz
• Dimensions (W x D x H): 80 x 54 x 38 cm
• Net weight: 48 kg
• Gross weight: 55 kg

Product information
The Elektro-mag M 4800 M is a laboratory microcentrifuge designed for routine and research applications requiring high speed and reproducible results. The unit reaches up to 14,000 rpm and delivers a maximum relative centrifugal force of 19,612 x g. PID speed control and an RCF display enable precise setup of centrifugal force and speed.

What is a laboratory centrifuge?
A laboratory centrifuge separates components of different densities in a liquid by applying centrifugal force. Samples in tubes are spun at high speed in a rotor; denser components sediment to the tube bottom while lighter fractions remain suspended.

Applications
Commonly used in clinical, research and industrial laboratories for tasks such as blood separation, cell harvesting, purification of proteins and nucleic acids, and molecular biology sample preparation.

Advantages

• Wide range of programmable functions (timer, pulse, 10 program memory)
• Precise control via PID and RCF display
• Low maintenance brushless motor
• Safety features for operator protection (lid switch, lid lock)
• User-friendly touchscreen interface

Specifications

• Capacity: 24 x 1.5 ml/2 ml
• Max. speed: 14,000 rpm
• Max. RCF: 19,612 x g
• Power: 350 W
• Power supply: AC 190–240 V / 50–60 Hz
• Dimensions (W x D x H): 80 x 54 x 38 cm
• Net weight: 48 kg
