Laboratory centrifuge M 615 M

clinicalfor molecular biologyfor research

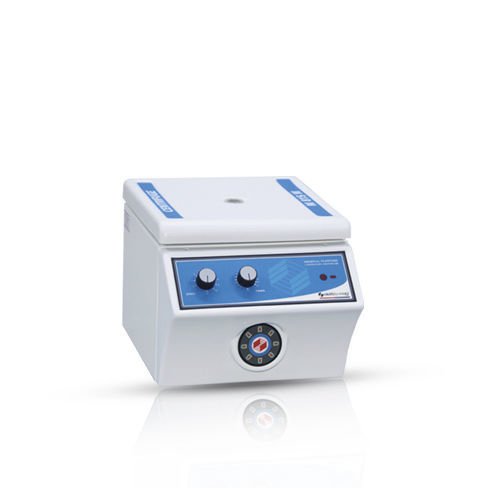

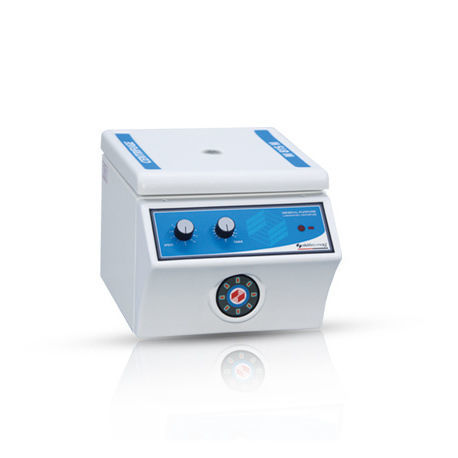

Product overview The M 615 M laboratory centrifuge is an economy-class benchtop unit designed for routine clinical and research separations. It accepts 6 x 15 ml tubes in a 35° fixed-angle rotor, reaches up to 5000 rpm (2515 x g), and features a 1–15 min timer with automatic stop. Tube nests are ABS hard plastic and the rotor is polycarbonate. Safety features include a lid safety switch and a lid locking mechanism. Power supply: AC 190–240 V / 50–60 Hz; power rating 100 W.

Technical summary Key operational and mechanical data for quick specification checks:

• Capacity: 6 x 15 ml tubes
• Rotor: fixed-angle 35° (polycarbonate)
• Max speed: 5000 rpm / Max RCF: 2515 x g
• Timer: 1–15 minutes (automatic stop)
• Power: 100 W, fuse 1 A, AC 190–240 V / 50–60 Hz
• Safety: lid safety switch and locking closure

Operating principle The centrifuge separates sample components by centrifugal force. Tubes placed in the rotor spin at high speed so denser particles move outward and form a pellet while lighter components remain suspended, enabling downstream analysis or processing.

Applications Typical uses in clinical and research environments include:

• Blood component separation and plasma/serum preparation
• Cell and tissue sedimentation
• Preparation of samples for molecular biology and biochemistry assays
• Routine clinical tests and small-volume research protocols

Key advantages

• Compact benchtop footprint for limited-space laboratories
• Simple timer control and continuous speed operation for routine workflows
• Easy-to-clean ABS and polycarbonate components
• Basic safety systems: lid switch and locking closure
• Cost-effective option for standard centrifugation tasks

Detailed specifications

• Capacity: 6 x 15 ml
• Rotor type: vertical 35° fixed angle
• Speed control: continuous (no step adjustment)
• Max. speed: 5000 rpm
• Max. RCF: 2515 x g
• Timer: 1–15 min (automatic stop)
• Fuse: 1 A
• Power rating: 100 W
• Safety: lid safety switch
• Closure lock: present
• Rotor material: polycarbonate
• Tube nests: ABS (hard plastic)
• Outer case: carbon steel with electrostatic powder paint & ABS
• Power supply: AC 190–240 V / 50–60 Hz
• Dimensions (W x D x H): 29 x 36 x 25 cm
• Net weight: 9 kg
• Gross weight: 10 kg
