Laboratory centrifuge M 4812 M

clinicalfor teachingfor research

Product information

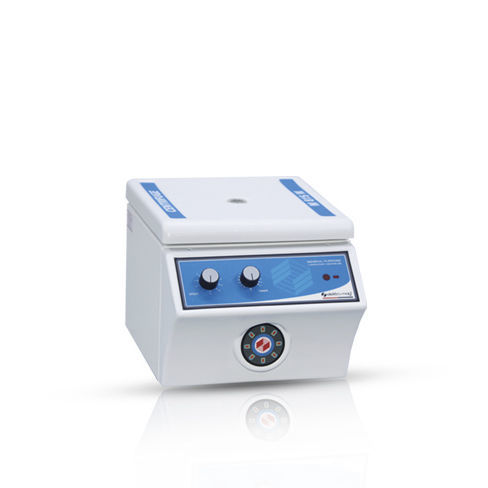

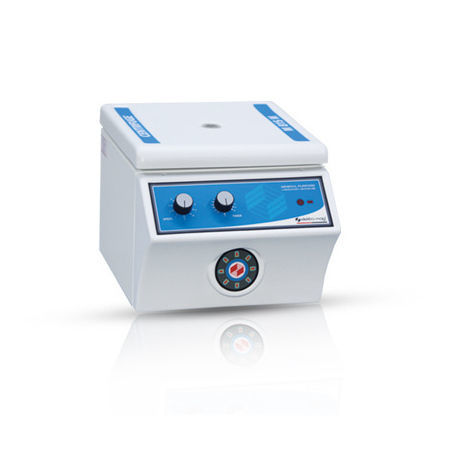

The Elektro-mag M 4812 M is an economy-class laboratory centrifuge with a 35° fixed-angle rotor designed for up to 12 x 15 ml tubes. It delivers up to 5000 rpm (max. 3057 x g) and is equipped with a continuous speed control, a 1–15 min timer with automatic stop, and safety features including a lid safety switch and closure lock. Rotor material is polycarbonate and tube nests are ABS hard plastic. The unit is powered by AC 190–240 V / 50–60 Hz and housed in a carbon steel case with electrostatic powder paint and ABS components.

Technical properties
Capacity: 12 x 15 ml
Rotor type: Vertical 35° fixed-angle
Speed control: Continuous (no step adjustment)
Max. speed: 5000 rpm
Max. RCF: 3057 x g
Timer: 1–15 min (automatic stop)
Power rating: 100 W
Fuse: 1 A
Safety: Lid safety switch, closure lock
Rotor material: Polycarbonate
Tube nesting (godet): ABS (hard plastic)
Outer case: Carbon steel with electrostatic powder paint & ABS
Power supply: AC 190–240 V / 50–60 Hz
Dimensions (W x D x H): 29 x 36 x 25 cm
Net weight: 9 kg
Gross weight: 10 kg

What is a laboratory centrifuge?
A laboratory centrifuge separates components of different densities by applying centrifugal force. Samples contained in tubes are accelerated by the rotor so that denser components sediment to the bottom while lighter fractions remain suspended.

Where are laboratory centrifuges used?
They are used in clinical, research and academic laboratories for applications such as blood processing, cell separation, protein and nucleic acid preparation, and other routine sample clarifications.

Advantages of the Elektro-mag M-series
Main considerations for procurement include low initial investment, straightforward operation, relevant feature set for basic preparative and analytical workflows, and built-in safety measures for routine laboratory use.

Technical features / Specifications

• Model: M 4812 M
• Capacity: 12 x 15 ml
• Rotor type: Vertical 35° fixed-angle
• Maximum speed: 5000 rpm
• Maximum RCF: 3057 x g
• Speed control: Continuous (no step adjustment)
• Timer: 1–15 min (automatic stop)
• Power rating: 100 W
• Fuse: 1 A
• Safety features: Lid safety switch, closure lock
• Rotor material: Polycarbonate
• Tube nesting (godet): ABS (hard plastic)
• Outer case: Carbon steel with electrostatic powder paint & ABS
• Power supply: AC 190–240 V / 50–60 Hz
• Dimensions (W x D x H): 29 x 36 x 25 cm
• Net weight: 9 kg
• Gross weight: 10 kg
