Laboratory centrifuge M 4812 P

bloodbenchtopfixed-angle

Product Information

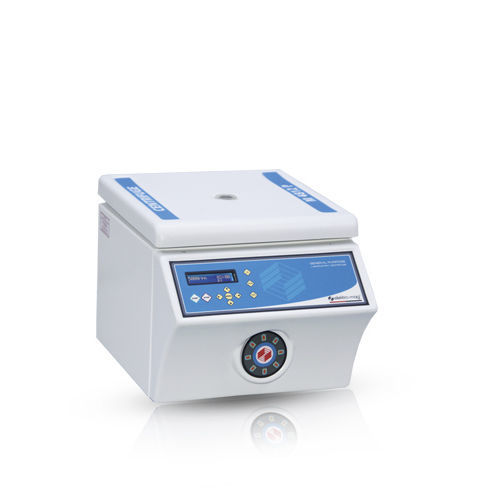

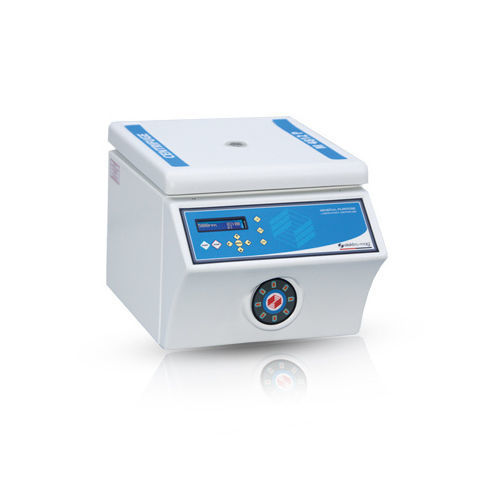

The Elektro-mag M 4812 P is a benchtop laboratory centrifuge with a 35° fixed-angle rotor for 12 × 15 ml tubes. The PID digital microprocessor control allows precise speed adjustment from 500 to 5000 rpm (10 rpm increments) and achieves a maximum relative centrifugal force of 3057 x g. The unit supports 10 programmable programs, automatic start when set speed is reached, time intervals from 1 to 99 minutes, continuous run and pulse (short-run) modes. Safety features include a lid safety switch and a lid lock that prevents opening during operation. Construction combines a polycarbonate rotor, ABS tube nests, carbon steel housing with electrostatic powder paint and stainless steel casing. The brushless maintenance-free motor ensures reliable operation.

Menu Options

• Speed setting
• RCF setting
• Timer (1–99 min)
• 10 programmable programs

Technical Specifications

• Model: M 4812 P
• Brand: Elektro-mag
• Capacity: 12 × 15 ml (12 tubes)
• Rotor: Vertical 35° fixed-angle (polycarbonate)
• Speed range: 500–5000 rpm (10 rpm increment)
• Maximum RCF: 3057 x g
• Control: PID digital microprocessor; digital display
• Programs: 10 programmable; pulse/short-run; automatic start at set speed; interval timing 1–99 min
• Motor: Brushless / maintenance-free
• Power rating: 350 W; Fuse: 7 A
• Power supply: AC 190–240 V / 50–60 Hz
• Materials: Tube nests ABS; rotor polycarbonate; outer case carbon steel with electrostatic powder coating; casing stainless steel
• Safety: Lid safety switch and lid lock (prevents opening during run)
• Dimensions (W×H×D): 29 × 25 × 36 cm
• Weight: Net 9 kg; Gross 10 kg
