Laboratory centrifuge M 4812 P II

clinicalfor researchfor sample preparation

Product overview

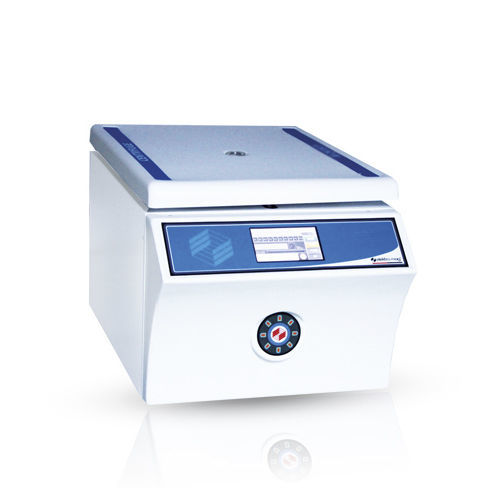

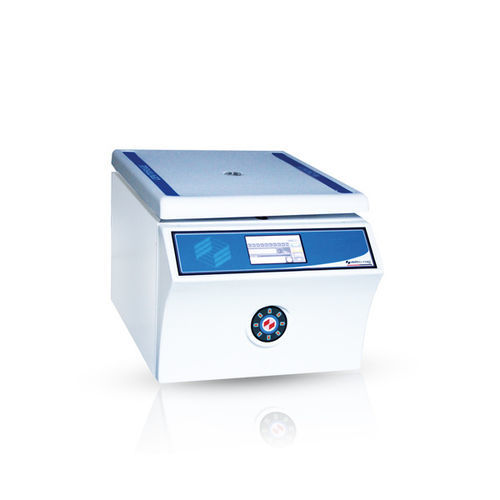

Elektro-mag M 4812 P II laboratory centrifuge with a vertical 35° fixed-angle rotor and capacity for 12 × 15 ml tubes. Features a 4.3” wide touchscreen and PID control for precise speed regulation. Speed range 500–5000 rpm with maximum centrifugal force up to 3057 × g. Brushless (maintenance-free) motor, continuous running mode and multiple programmable options (10 programs). Includes safety features such as lid safety switch and lid locking mechanism. Casing is electrostatically powder-painted carbon steel with ABS parts; inner chamber is stainless steel.

User controls / Menu options

• Touchscreen (4.3")
• Speed setting (rpm)
• RCF setting
• Timer (start when set speed is reached)
• Timer interval (1–99 min)
• 10 programmable programs
• Short running via pulse button

Applications / Uses
Used in academic, clinical and research laboratories for separation and purification of cells, subcellular organelles, viruses, proteins, nucleic acids, blood and other samples where separation by density is required.

Advantages

• PID control and digital display for precise and repeatable centrifugation
• Brushless (maintenance-free) motor for long service life
• User-friendly wide touchscreen interface
• Multiple programmable options for process control
• Safety systems including lid safety switch and lid lock to prevent opening during operation
• Durable electrostatically coated steel construction
• Available as part of a wide product range to match different application requirements

Technical table
Technical Property : Technical Data
Capacity : 12 x 15 ml
Rotor Type : Vertical 35° fixed angle
Max. Speed : 5000 rpm
Max. RCF : 3057 x g
Speed Setting Increment : 10 rpm
Speed Setting Range : 500-5000 rpm
Timer Start : When the set speed is reached
Timer Interval : 1-99 min
Continuous Running Mode : Available
Setting Centrifugal Force : Available
Short Running Period : Via pulse button
Number of Programs : 10
Fuse : 6 Amper
Power Rating : 350 W
Safety : Lid Safety Switch
Lid Lock : Available (prevents opening the lid during operation)
Speed Display : Available
Rotor Material : Polycarbonate
Motor Type : Brushless Motor / Maintenance Free Motor
Tube Nesting Material (Gode) : ABS (Hard Plastic)
Casing Material : Carbon Steel w/ Electrostatic Powder Paint & ABS
Inner Chamber Material : Stainless Steel
Power Supply : AC 190-240 V / 50-60 Hz
Dimensions (W x D x H) : 33 x 45 x 30 cm
Net Weight : 16 kg
Gross Weight : 18 kg

Characteristics / Technical specifications

• Capacity: 12 x 15 ml
• Rotor Type: Vertical 35° fixed angle
• Max. Speed: 5000 rpm
• Max. RCF: 3057 x g
• Speed Setting Increment: 10 rpm
• Speed Setting Range: 500-5000 rpm
• Timer Start: When set speed is reached
• Timer Interval: 1-99 min
• Continuous Running Mode: Available
• Setting Centrifugal Force: Available
• Short Running Period: Via pulse button
• Number of Programs: 10
• Fuse: 6 Amper
• Power Rating: 350 W
• Safety: Lid Safety Switch
• Lid Lock: Prevents opening during operation
• Speed Display: Digital
• Rotor Material: Polycarbonate
• Motor Type: Brushless / Maintenance Free
• Tube Nesting Material: ABS (Hard Plastic)
• Casing Material: Carbon Steel w/ Electrostatic Powder Paint & ABS
• Inner Chamber Material: Stainless Steel
• Power Supply: AC 190-240 V / 50-60 Hz
• Dimensions (W x D x H): 33 x 45 x 30 cm
• Net Weight: 16 kg
• Gross Weight: 18 kg
