Laboratory centrifuge M 615 P

clinicalfor researchfor sample preparation

Overview

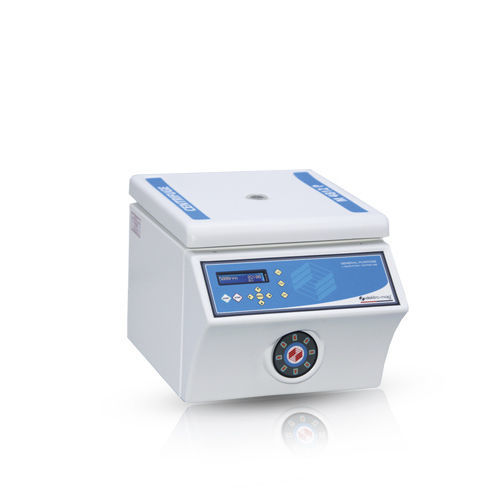

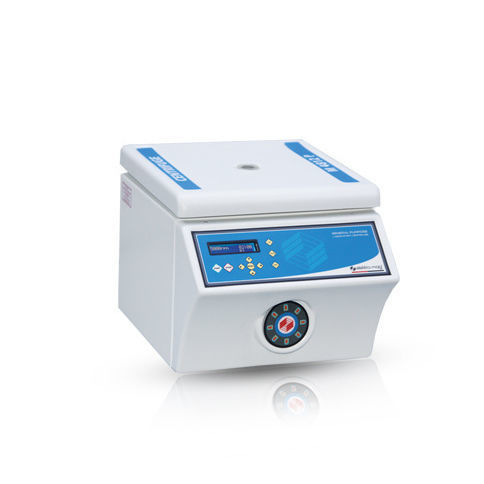

Elektro-mag M 615 P laboratory centrifuge features a fixed-angle rotor (35°) for 6 x 15 ml tubes. It includes PID digital microprocessor control and a digital display for precise speed adjustment from 500 rpm to 5000 rpm, with a maximum centrifugal force of 2515 x g. Safety features include a lid safety switch and a lid locking mechanism preventing opening during operation. Construction: electrostatically coated carbon steel with ABS components and stainless steel casing.

Product information
Model: P series with PID control and digital display. The integrated microprocessor permits adjustable start timing, interval mode, pulse (short-run) operation and storage for up to 10 programs. Brushless maintenance-free motor supports continuous operation and allows setting by speed (rpm) or RCF. Pulse function is accessible via a dedicated button.

Applications
Designed for academic, clinical and research laboratories to separate sample components by density. Typical applications include purification of cells and subcellular organelles, virus and protein preparation, nucleic acid workflows, blood processing and cell/molecular analyses.

Advantages

• Cost-effective option within its product range
• Engineered options adapted to process requirements
• Configurable features for varied laboratory workflows
• User-friendly digital controls and clear display
• Integrated safety systems: lid safety switch and lid lock

Technical Properties (table)
Capacity: 6 x 15 ml
Rotor Type: Fixed-angle 35°
Speed Control: PID digital microprocessor control
Control Panel: Speed, RCF & Timer
Max. Speed: 5000 rpm
Max. RCF: 2515 x g
Speed Setting Increment: 10 rpm
Speed Setting Range: 500-5000 rpm
Timer Start: When set speed is achieved
Time Interval: 1-99 min
Continuous Running Mode: Available
Setting Centrifugal Force: Available
Short Running Period: Via pulse button
Number of Programs: 10
Fuse: 1 A
Power Rating: 350 W
Safety: Lid safety switch; lid lock prevents opening during operation
Speed Display: Yes
Rotor Material: Polycarbonate
Motor Type: Brushless (maintenance-free)
Tube Nesting Material: ABS (hard plastic)
Outer Case: Carbon steel with electrostatic powder paint & ABS
Casing Material: Stainless steel
Power Supply: AC 190-240 V / 50-60 Hz
Dimensions (W x H x D): 29 x 25 x 36 cm
Net Weight: 9 kg; Gross Weight: 10 kg

Technical specifications

• Capacity: 6 x 15 ml
• Rotor Type: Fixed-angle 35°
• Speed Control: PID digital microprocessor control
• Control Panel: Speed, RCF & Timer
• Max. Speed: 5000 rpm
• Max. RCF: 2515 x g
• Speed Setting Increment: 10 rpm
• Speed Setting Range: 500-5000 rpm
• Timer Start: When set speed is achieved
• Time Interval: 1-99 min
• Continuous Running Mode: Available
• Short Running Period: Via pulse button
• Number of Programs: 10
• Fuse: 1 A
• Power Rating: 350 W
• Safety: Lid safety switch; lid lock prevents opening during operation
• Rotor Material: Polycarbonate
• Motor Type: Brushless (maintenance-free)
• Tube Nesting Material: ABS (hard plastic)
• Outer Case: Carbon steel with electrostatic powder paint & ABS
• Casing Material: Stainless steel
• Power Supply: AC 190-240 V / 50-60 Hz
• Dimensions (W x H x D): 29 x 25 x 36 cm
• Net Weight: 9 kg; Gross Weight: 10 kg
