Laboratory centrifuge M 415 P

clinicalfor researchfor sample preparation

Product Information

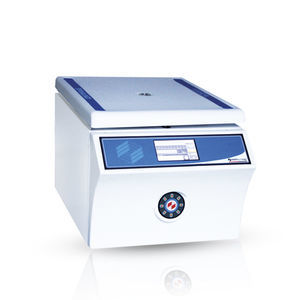

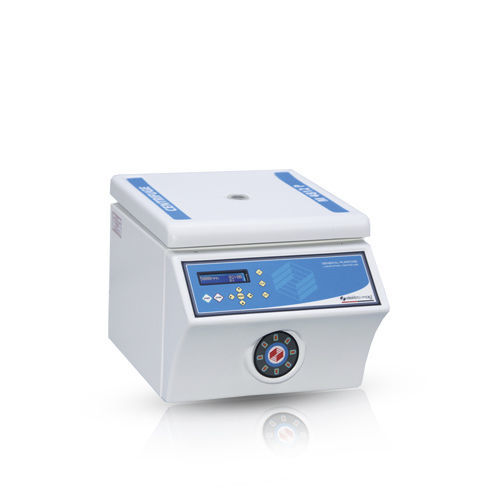

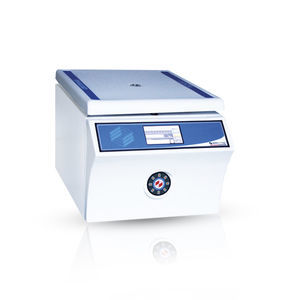

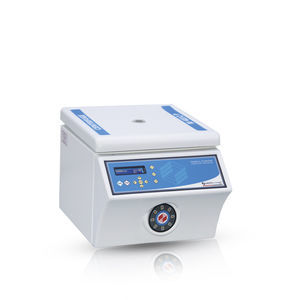

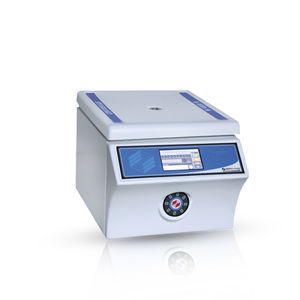

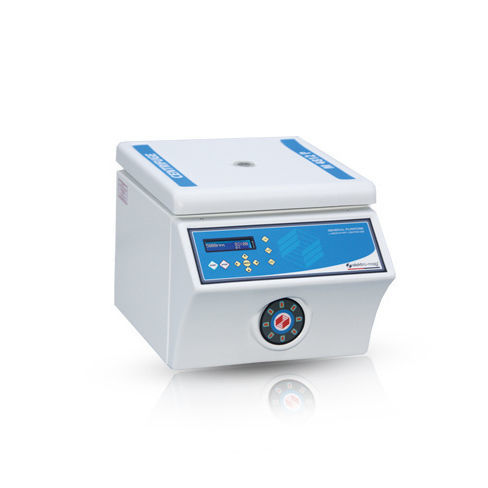

Elektro-mag M 415 P laboratory centrifuge features a 35° fixed-angle rotor with capacity for 4 x 15 ml tubes and 10 programmable memory slots. PID digital microprocessor control and a digital display provide precise speed regulation from 500 to 5000 rpm. Maximum relative centrifugal force reaches 2515 x g. The integrated microprocessor programs support start delay, interval timing and short-run (pulse) modes for controlled separations. A lid lock prevents opening during operation for enhanced safety. The outer case is electrostatically coated carbon steel combined with ABS; internal casing is stainless steel. Rotor parts are polycarbonate and tube nests are ABS hard plastic.

What is a laboratory centrifuge?
A centrifuge is a laboratory instrument that separates sample components by density using centrifugal force. Tubes placed in a rotating rotor generate centrifugal force that causes denser particles to sediment while lighter components remain suspended, enabling fractionation of biological or chemical samples.

Where laboratory centrifuges are used
These centrifuges are used in academic, clinical and research laboratories for applications such as blood processing, cell separation, organelle isolation, virus and protein purification, and nucleic acid preparation—any workflow requiring density-based separation.

Advantages of the Elektro-mag laboratory centrifuge

• Range covering basic to advanced configurations
• Competitive initial investment
• Configurable functions for diverse processes
• Intuitive digital control and display for ease of use
• Safety features including lid safety switch and lid lock

Technical Properties (table)
Capacity: 4 x 15 ml
Rotor Type: Vertical 35° fixed angle
Speed Control: PID digital microprocessor control
Control Panel: Speed, RCF & Timer
Max. Speed: 5000 rpm
Max. RCF: 2515 x g
Speed Setting Increment: 10 rpm
Speed Setting Range: 500-5000 rpm
Timer Start: When the set speed is achieved
Time Interval: 1-99 min.
Continuous Running Mode: Available
Setting Centrifugal Force: Available
Short Running Period: Via Pulse Button
Number of Programs: 10
Fuse: 1 A
Power Rating: 350 W
Safety: Lid safety switch
Lid Lock: Prevents opening during operation
Speed Display: Available
Rotor Material: Polycarbonate
Motor Type: Brushless / maintenance-free motor
Tube Nesting Material: ABS (hard plastic)
Outer Case Material: Carbon steel with electrostatic powder coating & ABS
Casing Material: Stainless steel
Power Supply: AC 190-240 V / 50-60 Hz
Dimensions (WxHxD): 29 x 25 x 36 cm
Net Weight: 9 kg
Gross Weight: 10 kg

Technical specifications

• Capacity: 4 x 15 ml
• Rotor Type: Vertical 35° fixed angle
• Speed Control: PID digital microprocessor control
• Control Panel: Speed, RCF & Timer
• Max. Speed: 5000 rpm
• Max. RCF: 2515 x g
• Speed Setting Increment: 10 rpm
• Speed Setting Range: 500-5000 rpm
• Timer Start: When the set speed is achieved
• Time Interval: 1-99 min.
• Continuous Running Mode: Available
• Setting Centrifugal Force: Available
• Short Running Period: Via Pulse Button
• Number of Programs: 10
• Fuse: 1 A
• Power Rating: 350 W
• Safety: Lid safety switch
• Lid Lock: Prevents opening during operation
• Speed Display: Available
• Rotor Material: Polycarbonate
• Motor Type: Brushless / maintenance-free
• Tube Nesting Material: ABS (hard plastic)
• Outer Case Material: Carbon steel with electrostatic powder coating & ABS
• Casing Material: Stainless steel
• Power Supply: AC 190-240 V / 50-60 Hz
• Dimensions (WxHxD): 29 x 25 x 36 cm
• Net Weight: 9 kg
• Gross Weight: 10 kg
