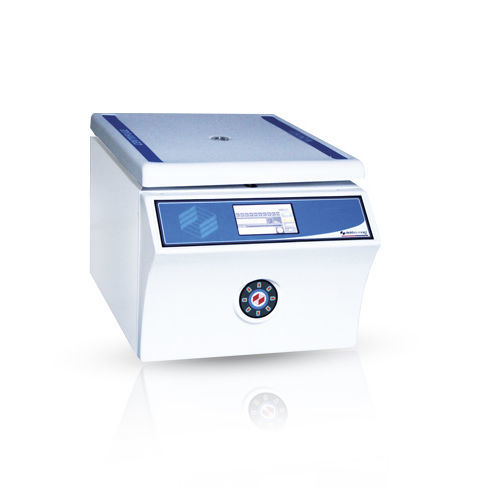

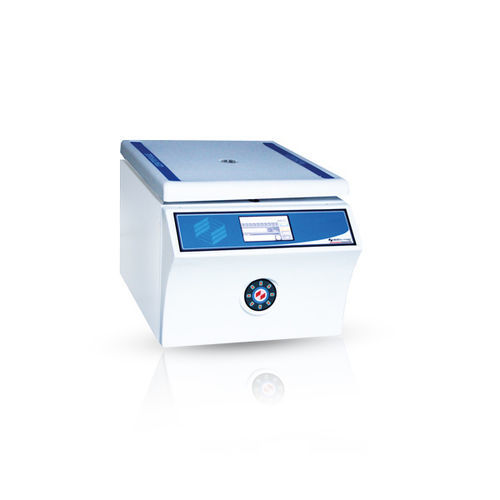

Laboratory centrifuge M 2415 P

for biologyclinicalfor research

Product overview
Elektro-mag M 2415 P is a bench laboratory centrifuge with a 35° fixed-angle rotor and a brushless, maintenance-free motor. The unit provides a 4.3-inch touchscreen with PID speed control, adjustable speed from 500 to 5000 rpm and a maximum RCF of 3057 x g. Capacity is 24 x 15 ml.

Main features

• Capacity: 24 x 15 ml tubes
• Fixed-angle rotor, 35°
• Brushless maintenance-free motor with PID control
• 4.3-inch touchscreen for intuitive operation
• Adjustable acceleration and deceleration
• 10 programmable memory slots
• Pulse (short run) function
• Lid safety switch and lid lock preventing opening during run
• Electrostatically coated steel casing

Control and program options

• Speed setting in rpm (range 500–5000 rpm, increment 10 rpm)
• RCF setting in g with direct display
• Timer: starts when set speed reached (interval 1–99 min)
• 10 stored programs
• Pulse/short run via dedicated button

Technical table

• Model: M 2415 P
• Capacity: 24 x 15 ml
• Rotor type: Vertical 35° fixed-angle
• Maximum speed: 5000 rpm
• Maximum RCF: 3057 x g
• Speed increment: 10 rpm
• Speed range: 500–5000 rpm
• Timer start: when set speed reached
• Timer interval: 1–99 min
• Continuous running mode: yes
• Short run: pulse button
• Number of programs: 10
• Fuse: 6 A
• Power: 350 W
• Motor: Brushless / maintenance-free
• Rotor material: polycarbonate
• Tube nest material: ABS (hard plastic)
• Casing: carbon steel with electrostatic powder paint & ABS
• Inner chamber: sheet aluminium with stoved enamel paint
• Power supply: AC 190–240 V / 50–60 Hz
• Dimensions (WxDxH): 37 x 55 x 34 cm
• Net weight: 22 kg
• Gross weight: 24 kg

Applications
Suitable for routine sample separation in biology, clinical and research laboratories. Typical uses include blood processing, cell and molecular sample preparation, phase separation and clarification tasks.

Specifications

• Model: M 2415 P
• Capacity: 24 x 15 ml
• Rotor: fixed-angle 35°
• Max speed/RCF: 5000 rpm / 3057 x g
• Motor: brushless, maintenance-free
• Control: 4.3-inch touchscreen, PID, RCF and rpm input
• Programs: 10 programmable memories
• Safety: lid switch and lid lock
• Power: 350 W, AC 190–240 V
• Dimensions: 37 x 55 x 34 cm
• Weight: 22 kg (net)
