Body tray mortuary cabinet CAM030301

3-bodyrefrigeratedmodular

Overview

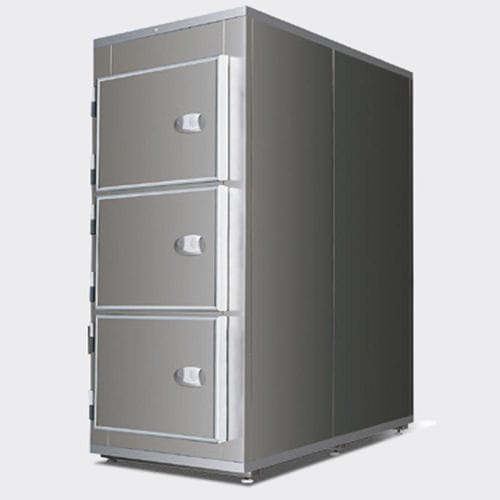

Modular mortuary chamber for clinical and municipal facilities. Designed for storage of 3 bodies on 3 levels with 3 lockable doors. Available in positive (+2 / +8 °C) or negative (-10 / -20 °C) temperature ranges; monoblock cooling unit mounted on top. Delivered as panels for on‑site assembly.

Key features

• Modular configuration: 3 body trays on 3 levels; expandable modules available.
• Cooling options: refrigerated (+2 / +8 °C) for short‑term or freezer (-10 / -20 °C) for long‑term storage; ventilated cooling; top monoblock.
• Doors: 3 lockable doors with name‑tag holder; this version includes door heating elements.
• Construction: standard white plastic‑coated steel interior/exterior; stainless steel available as option.
• Insulation: high‑density polyurethane foam (PUF), CFC‑free; thickness 80 mm.
• Internal fittings: 3 stainless steel AISI 304 trays with rollers and handles for insertion, extraction and transport.
• Controls and safety: electronic thermostat with main switch and alarms, temperature setting resolution 0.1 °C; internal lighting; automatic evaporation of condensate.

Technical data

• Product code: CAM030303
• Number of bodies: 3
• Number of doors: 3, lockable
• External dimensions without monoblock (LxPxH): 104 x 235 x 208 cm
• External dimensions with monoblock (LxPxH): 104 x 235 x 253 cm
• Internal tray dimensions: 2060 x 600 x 120 mm (H); capacity per tray: max 250 kg
• Insulation: high‑density polyurethane foam, CFC‑free; thickness 80 mm
• Refrigerant: R290
• Voltage: 230/1/50 Hz (alternative supply on request)
• Cooling type: ventilated; defrost: automatic with condensate evaporation

Options and accessories

• Digital monitor and printer (DMLP)
• Alarm system and temperature data recording
• Additional stainless steel pans and basins
• Hydraulic roll trolleys and electric hydraulic trolleys (various heights)
• Alternative voltage (220V/1~/60Hz) and packing in crate on request

Delivery and installation
Supplied disassembled in panels with monoblock unit to be installed on site by qualified technicians. Removable internal fittings and accessible surfaces for cleaning and maintenance. Installation, electrical connection and commissioning to be performed according to local regulations.
