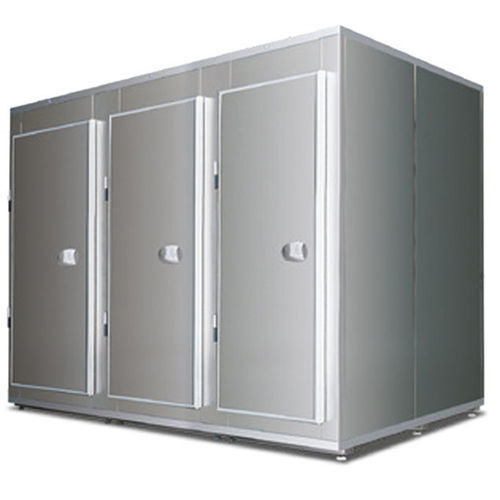

Mortuary stretcher mortuary cabinet CAM030903

for body trays9-bodywith loading trolley

Product description

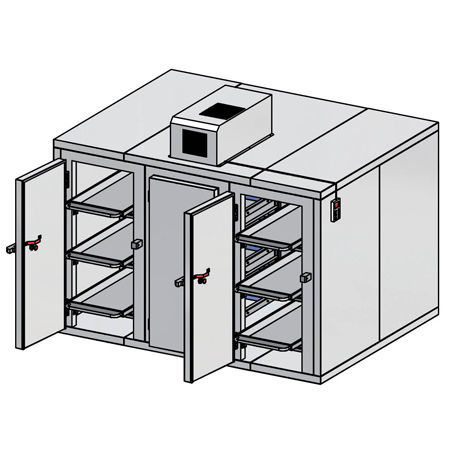

Mortuary chamber CAM030903 modular unit for storage of 9 bodies on 3 levels. Supplied in panelized form for on-site assembly. Available for short-term storage at positive temperature (+2/+8 °C) or long-term storage at negative temperature (-10/-20 °C). Monoblock refrigeration installed on the upper part; doors fitted with heating elements. Controller with main switch and alarms; temperature adjustable to 0.1 °C. Internal lighting and automatic evaporation of condensate.

Main features

• Capacity: 9 bodies on 3 levels
• Doors: 3 with lock and name-tag holder
• Insulation: polyurethane foam (PUF) 80 mm, CFC-free
• Temperature ranges: +2/+8 °C (refrigerator) or -10/-20 °C (freezer)
• Delivered in panels for on-site assembly

Structure and refrigeration
Structure in white plastic-coated steel internal/external; stainless steel internal/external available on request. Internal trays and stainless steel rolling supports for insertion and extraction of body trolleys. Refrigeration by ventilated monoblock (R290) with automatic defrost and condensate evaporation. Monoblock positioned on the upper part of the unit.

Dimensions and technical data

• External dimensions (with monoblock): 284 x 235 x 256 cm
• External dimensions (without monoblock): 284 x 235 x 208 cm
• Internal trays: 9 stainless steel trays (AISI 304), dimensions 2060 x 600 x 120 mm, max load 250 kg each
• Insulation thickness: 80 mm
• Refrigerant gas: R290
• Voltage: 230 V / 1~ / 50 Hz

Accessories

• Digital monitor (DMLP)
• Printer (DMLP PRINTER)
• Alternative supply 220 V / 1~ / 60 Hz
• Additional stainless steel basin
• Hydraulic trolley with rollers
• Electric hydraulic trolley with rollers
