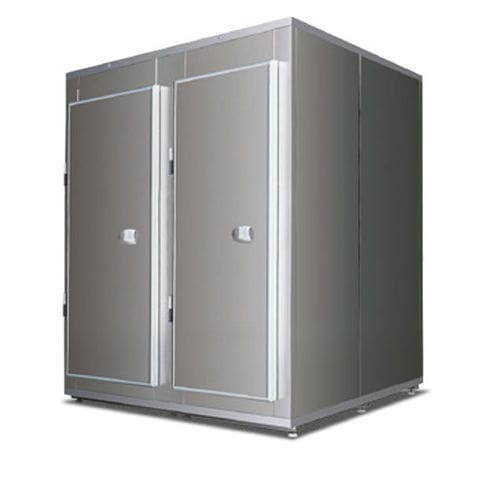

Body tray mortuary cabinet CAM030602

6-body2-doormodular

Brief overview
Modular mortuary chamber for storage of 6 bodies on stacked levels. Supplied in panels for on-site assembly and fitted with an upper monoblock refrigeration unit; available for positive (+2 / +8 °C) or negative (-10 / -20 °C) storage.

Typical applications

• Hospital mortuaries
• Forensic and medico-legal facilities
• Funeral homes and crematoria receiving areas

Construction and dimensions

• Modular panel construction delivered disassembled for installation on site
• External structure: white powder-coated steel (optional stainless steel)
• Internal trays: 6 stainless-steel trays with handles and roller guides
• External dimensions with monoblock (L×D×H): 1940 × 2350 × 2530 mm
• External dimensions without monoblock (L×D×H): 1940 × 2350 × 2080 mm

Cooling and temperature control

• Upper-mounted monoblock refrigeration unit
• Temperature ranges: positive storage +2 / +8 °C (short-term) or negative storage -10 / -20 °C (long-term)
• Ventilated refrigeration with automatic defrost and condensation evaporation
• Thermostat with main switch, alarms and 0.1°C setting resolution

Insulation and materials

• High-density polyurethane (PU) foam insulation, CFC-free
• Insulation thickness: 80 mm
• Internal surfaces: smooth stainless steel finish for easy cleaning

Installation, handling and maintenance

• Delivered in panels for assembly; monoblock to be installed on site
• Internal lighting and floor drain for condensate
• Removable tray guides and sliding rollers for quick cleaning

Accessories and options

• Alarm and temperature data-logging systems (digital monitor, printer)
• Hydraulic or electric body trolleys
• Additional stainless-steel tanks
• Alternative voltage supply on request

Technical data

• Capacity: 6 bodies
• Number of doors: 2 (configuration with 6 tray positions)
• Tray dimensions (L×W×H): 2060 × 600 × 120 mm – max load 250 kg
• Insulation: PU foam, high density, CFC-free
• Insulation thickness: 80 mm
• Refrigerant: R290
• Voltage: 230 V / 1 ~ / 50 Hz (other voltages on request)
• Refrigeration type: ventilated
• Defrost: automatic with condensation evaporation
• Control: thermostat with main switch and alarms; setting resolution 0.1°C
