Body tray refrigerated mortuary cabinet CAM020201

2-bodyfront-loadingwith loading trolley

Overview

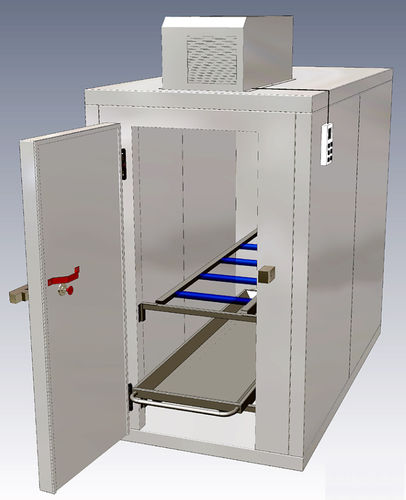

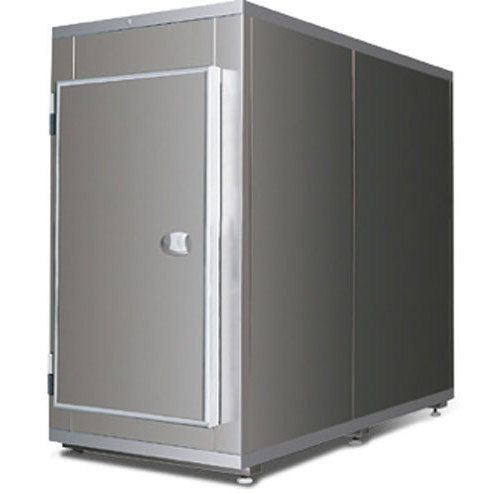

The CAM020201 is a modular mortuary chamber designed for the storage of 2 bodies with a single lockable door. Delivered as flat-packed panels for on-site assembly, it is available for short-term positive refrigeration (+2 / +8 °C) or, on request, long-term negative refrigeration (-10 / -20 °C). Exterior and interior finish is white plastic-coated steel as standard; stainless steel interior/exterior is optional.

Key features

• Capacity: 2 bodies
• Number of doors: 1, with lock and name-tag holder
• Temperature ranges: +2 / +8 °C (positive) or -10 / -20 °C (negative)
• Insulation: high-density polyurethane foam (CFC-free), thickness 80 mm
• Internal trays: 2 stainless steel trays with handles and rolling guides
• Refrigeration: ventilated system with monoblock unit mounted on top
• Control: electronic controller with main switch, alarms and temperature setpoint resolution 0.1 °C
• Extras: internal lighting, automatic condensate evaporation, floor drain

Technical description
Unit supplied disassembled in panels with structure and monoblock for installation on site. Structure is standard white plastic-coated steel inside and out; stainless steel version available on request. Internal trays are stainless steel (AISI 304) with central slope to contain fluids and handles for safe handling. The refrigeration monoblock is installed in the upper part of the chamber and doors are fitted with heating elements when required.

Dimensions & insulation

• External dimensions with monoblock (LxPxH): 104 x 235 x 233 cm
• External dimensions without monoblock (LxPxH): 104 x 235 x 188 cm
• Tray dimensions: 2060 x 600 x 120 mm (H), max load 250 kg
• Insulation thickness: 80 mm (high-density PU, CFC-free)

Refrigeration & electrical data

• Refrigerant: R290
• Refrigeration type: ventilated
• Defrost: automatic with condensate evaporation
• Voltage: 230/1/50 Hz

Accessories & options

• Alarm and temperature recording units (digital monitor, printer)
• Additional stainless steel trays or tanks
• Hydraulic or electric trolleys for body handling
• Alternative finishes in stainless steel
• Packaging and transport options

Applications
Designed for hospitals, funeral homes, forensic facilities and institutional mortuaries where compact, modular refrigerated storage is required.
