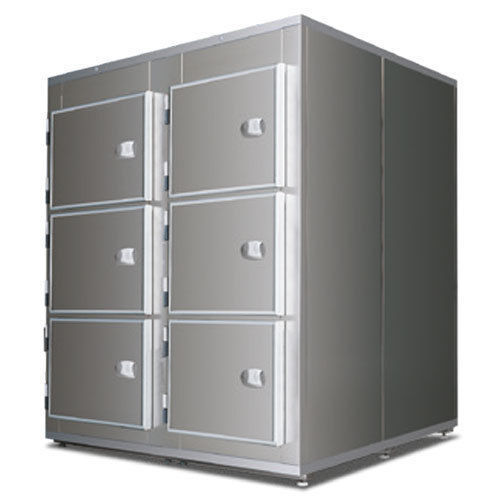

Body tray mortuary cabinet CAM030606

for mortuary stretchers6-bodyfor temporary storage

Overview
Modular mortuary chamber supplied in panels for on-site assembly. Configured for 6 bodies on 3 levels with 6 individual doors. Available in positive-temperature version for short-term storage (+2/+8 °C) or negative-temperature version for long-term storage (-10/-20 °C). Monoblock cooling unit is mounted on top of the chamber.

Key features

• Capacity: 6 bodies on 3 levels
• Doors: 6 individual doors with lock and name-tag holder
• Temperature ranges: +2/+8 °C (refrigeration) or -10/-20 °C (freezing)
• Insulation: polyurethane foam (PU) high-density, CFC-free, 80 mm
• Delivered as flat panels for assembly on site

Structure and finishes

• Standard: internal and external white plastic-coated steel
• Optional: stainless steel internal and external structure
• Internal trays and guides in stainless steel with sliding rollers for easy insertion/extraction
• Seamless deep-drawn stainless steel inner surfaces to facilitate cleaning

Refrigeration and controls

• Monoblock aggregate mounted on top of the unit
• Ventilated refrigeration; automatic defrost with automatic condensate evaporation
• Controller with main switch, alarms and temperature setting to 0.1 °C
• Internal lighting and condensate drain

Trays and handling

• Number of trays: 6 stainless-steel stretchers with rollers and handles
• Stretcher dimensions: 2060 x 600 x 120 mm (H) — capacity up to 250 kg each
• Movable anti-slip locks on guides for easy removal and cleaning

Accessories (optional)

• Alarm and temperature recording systems (digital monitor, printer)
• Body trolleys (hydraulic, electric options)
• Additional stainless-steel tanks or trays
• Special voltage configurations on request

Technical specifications

• Product code: CAM030606
• External dimensions without monoblock (W x D x H): 1910 x 2260 x 2260 mm
• Insulation thickness: 80 mm (PU, high density, CFC-free)
• Refrigerant (typical): R290
• Voltage: 230 V / 1 ~ / 50 Hz (other voltages on request)
• Number of doors: 6 (with lock and name-tag holder)

Notes
Unit is supplied disassembled in panels with monoblock for on-site installation. Stainless-steel interior/exterior is available on request.
