Body tray refrigerated mortuary cabinet CAM030303

3-bodyfront-loadingwith loading trolley

Overview

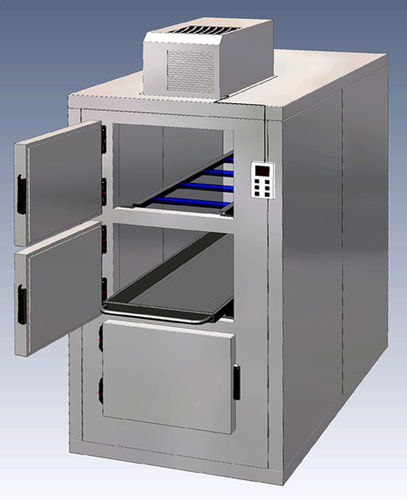

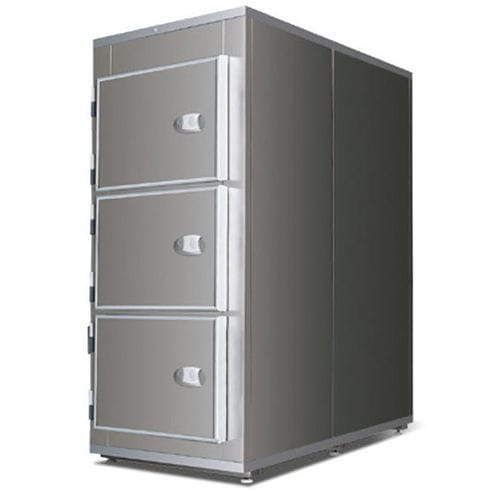

Modular mortuary chamber supplied in panels for on-site assembly, designed to store up to 3 bodies across 3 levels with 3 lockable doors and name-tag holders. Available with a refrigeration monoblock for positive temperatures (+2 / +8°C) for short-term storage or in a freezing configuration (-10 / -20°C) for long-term storage. Structure is white plastic-coated steel inside and outside, with stainless-steel internal trays; stainless-steel construction available on request.

Key features

• Capacity: 3 bodies on 3 levels
• Doors: 3 lockable doors with name-tag holders
• Temperature ranges: +2 / +8 °C (refrigeration) or -10 / -20 °C (freezing)
• Insulation: high-density polyurethane foam (PUF), CFC-free, 80 mm thickness
• Internal trays: 3 stainless-steel trays with handles, seamless rounded corners for easy cleaning
• Monoblock refrigeration unit positioned on the upper part of the chamber

Technical specifications

• Internal dimensions (excluding monoblock) WxDxH: 1210 x 2260 x 2260 mm
• Insulation thickness: 80 mm (PUF)
• Refrigeration type: ventilated; refrigerant as specified (e.g., R290)
• Control: thermostat with main switch, alarms and temperature setting to 0.1 °C
• Defrost: automatic with condensation evaporation and floor drain
• Lighting: internal lighting included

Accessories

• Digital monitor and printer for temperature recording
• Alarm and temperature data-logging systems
• Hydraulic roller trolleys and electric roller trolleys for body transport
• Additional stainless-steel pans and protective packaging options

Installation & maintenance
Supplied disassembled in panels with monoblock to be installed on site. Internal tray system is removable for cleaning. Periodic maintenance of the refrigeration unit, verification of door seals and alarm functioning is recommended.
