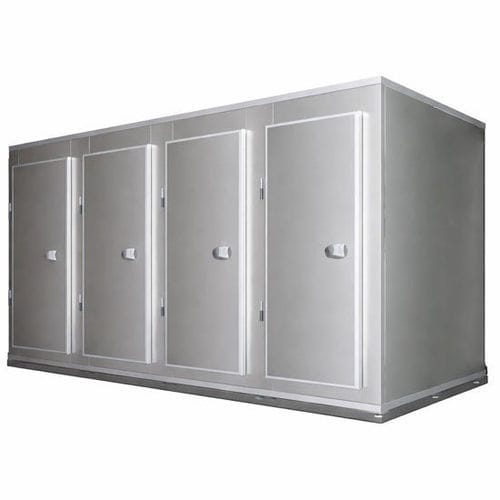

Mortuary stretcher mortuary cabinet CAM031204

for body trays12-bodyrefrigerated

Brief description

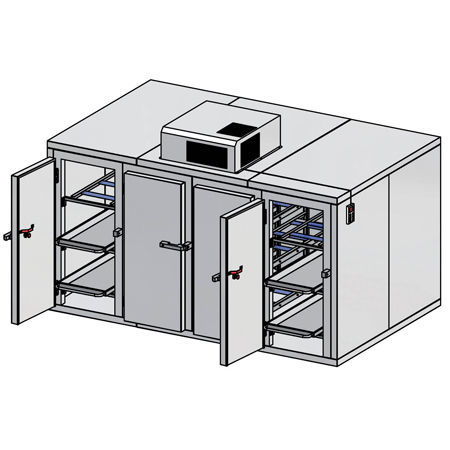

Modular mortuary chamber for 12 bodies on multiple levels with 4 doors. Available for positive refrigeration (+2/+8°C) for short-term storage or negative refrigeration (-10/-20°C) for long-term storage. Exterior/interior in white plastic-coated steel; stainless steel available as an option. Supplied in panels for on-site assembly with an upper-mounted monoblock refrigeration unit.

Key functional features

• Temperature control with main switch and alarms; setting resolution 0.1°C
• Ventilated refrigeration with automatic defrost and automatic condensation evaporation
• Internal lighting and floor drain
• Doors equipped with heating elements (for negative-temperature versions)

Installation and configuration
Delivered disassembled in panels. Modular composition allows configurations with modules of 2, 3 or 4 bodies per module and multi-level installation (2–4 levels). Monoblock unit is installed in the upper part of the chamber.

Accessories and handling

• Alarm systems and temperature data recording available
• Body transport trolleys compatible; removable stainless-steel trays with handles for each position (12 trays)
• Doors: 4 with locks and name-tag holders

Dimensions and technical specifications

• Number of bodies: 12
• Number of doors: 4 (with lock and name-tag holder)
• Internal dimensions excluding monoblock (W x D x H): 3660 x 2260 x 2110 mm
• Insulation: high-density polyurethane foam (CFC-free)
• Insulation thickness: 80 mm
• Tray material: AISI 304 stainless steel; typical tray size 2060 x 600 x 120 mm; individual tray load up to 250 kg
• Refrigerant (option/configuration dependent): R290
• Voltage (typical): 230 V / 1~ / 50 Hz

Hygiene and maintenance
Interior trays and guides are designed for easy removal and cleaning. Deep-drawn stainless-steel internal panels without welded corners reduce dirt traps and facilitate sanitary maintenance.
