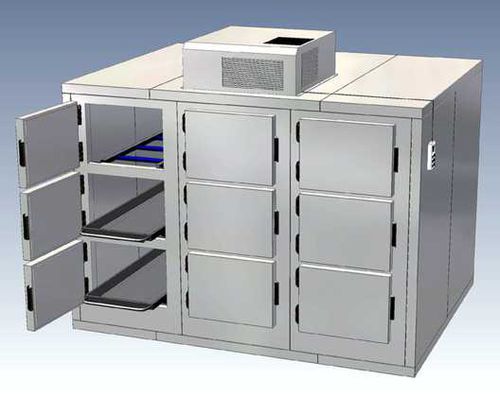

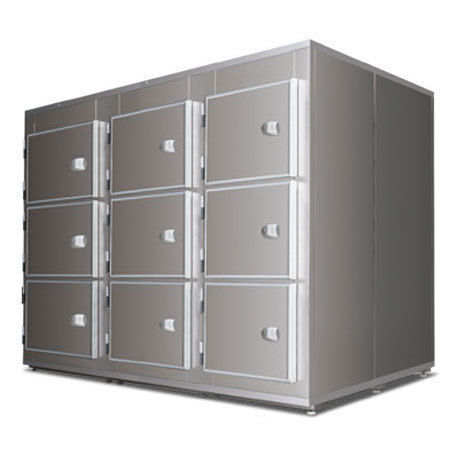

Body tray mortuary cabinet CAM030909

9-bodymodularwith loading trolley

Description
Modular mortuary chamber CAM030909 for storage of 9 bodies on 3 levels with 9 doors, available in positive (+2/+8 °C) or negative (-10/-20 °C) temperature versions. Supplied dismantled in panels with monoblock to be installed on site. Thermostat with main switch and alarms, temperature setting to 0.1 °C, internal lighting, automatic condensate evaporation and floor drain.

Main specifications

• Capacity: 9 bodies (3 levels)
• Number of doors: 9, each with lock and name tag holder
• External dimensions (with monoblock): 284 x 235 x 256 cm (L x D x H)
• External dimensions (without monoblock): 284 x 235 x 208 cm (L x D x H)
• Temperature range: +2/+8 °C (short-term) or -10/-20 °C (long-term)
• Insulation: high-density polyurethane foam (no CFC), thickness 80 mm

Structure and refrigeration

• External finish: white powder-coated steel; internal structure in stainless steel (full stainless steel available on request)
• Monoblock refrigeration unit installed on top; ventilated refrigeration with automatic defrost and condensate evaporation
• Controller with main switch, alarms and temperature control to 0.1 °C
• Refrigerant: R290; Voltage: 230/1/50 Hz

Tray details

• Number of trays: 9 stainless-steel trays (AISI 304) with handles and rollers for insertion/removal
• Tray dimensions: 2060 x 600 x 120 mm (L x W x H)
• Max load per tray: 250 kg

Accessories

• Digital monitor and printer (DMLP)
• Temperature recording and alarm systems
• Hydraulic or electric roller trolleys
• Additional stainless-steel pan and special voltages on request

Installation and maintenance

• Delivered in panels for on-site assembly; monoblock to be installed on top
• Seamless internal stainless-steel structure for easy cleaning and hygiene
• Requires qualified electrical and refrigeration installation
