Mortuary stretcher refrigerated mortuary cabinet CAM031212

12-bodyfront-loadingwith door

Overview

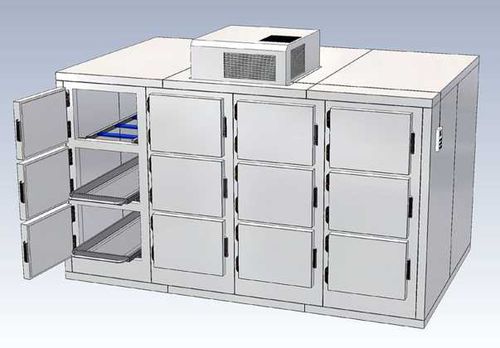

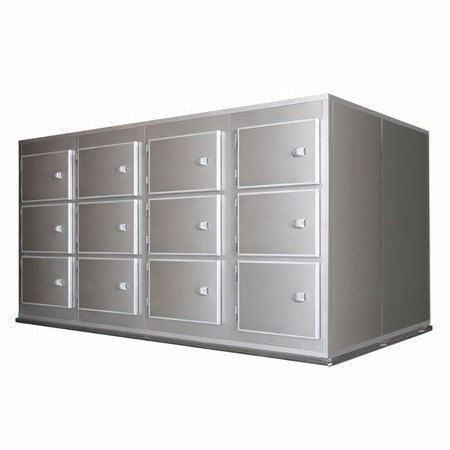

Modular mortuary chamber CAM031212 for 12 bodies arranged on 3 levels with 12 lockable doors and name-tag holders. Available in positive storage (+2/+8 °C) for short-term conservation or negative storage (-10/-20 °C) for long-term conservation. Structure in white powder-coated steel internally and externally; stainless steel version available on request. Supplied as disassembled panels with a top-mounted monoblock refrigeration unit.

Main features

• Thermostat with main switch and audible/visual alarms; temperature setting resolution 0.1 °C
• Top-mounted monoblock refrigeration unit (refrigerator or freezer ranges)
• Internal lighting and automatic evaporation of condensate
• Lockable doors with name-tag holders
• Internal trays (12) with handles; removable for cleaning
• High-density PUF insulation, 80 mm thickness, CFC-free

Technical specifications

• Number of bodies: 12 (3 levels)
• Number of doors: 12, with locks and name-tag holders
• Temperature ranges: +2 / +8 °C (refrigeration) or -10 / -20 °C (freezing)
• External dimensions with monoblock L x W x H: 374 x 235 x 256 cm
• External dimensions without monoblock L x W x H: 374 x 235 x 208 cm
• Internal trays: 12 in AISI 304 stainless steel, 2060 x 600 x 120 mm (H), max load 250 kg
• Insulation: high-density polyurethane foam (PUF), 80 mm, CFC-free
• Refrigeration type: ventilated; automatic defrost with condensate evaporation

Accessories & options

• Digital monitor (DMLP) and printer for temperature recording
• Alarm and remote monitoring systems
• Optional full stainless steel internal/external structure
• Additional stainless steel basin
• Hydraulic roller trolleys (H 31–177 cm) and electric hydraulic trolleys (H 38.5–201.5 cm)
• Special packing (cage) and alternative electrical supplies (220 V/1~/60 Hz)

Installation & maintenance

Delivered in panels for on-site assembly. Monoblock unit is installed in the upper part of the chamber. Routine maintenance includes refrigeration system checks, door seals inspection and cleaning of trays. Internal components and trays are removable to facilitate service access.

Cleaning & hygiene

Interior trays and critical internal surfaces are built in deep-drawn stainless steel without welded corners to ensure effective cleaning and disinfection. Design facilitates compliance with health and sanitary requirements in mortuary and medical facilities.
