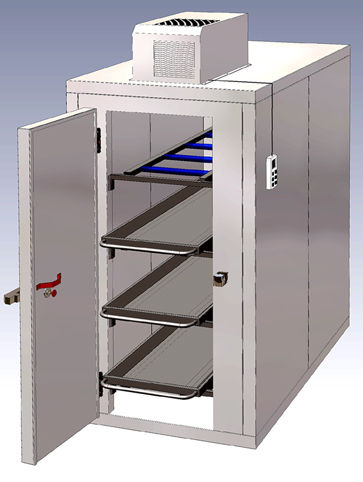

4-body mortuary cabinet CAM040401

modularwith door1-door

Brief description
Modular mortuary chamber designed for storage of 4 bodies on multiple levels, supplied as flat-packed panels for on-site assembly. Available for short-term storage (refrigerator mode +2 / +8 °C) or long-term storage (freezer mode -10 / -20 °C). Doors are fitted with heating elements. Aggregate monoblock refrigeration unit is mounted in the upper part of the chamber.

Key features

• Capacity: 4 bodies
• Number of doors: 1, with lock and name-tag holder
• Temperature ranges: +2 / +8 °C (positive) or -10 / -20 °C (negative)
• Temperature setting accuracy: 0.1 °C with alarms and main switch
• Insulation: high-density PUF, CFC-free — 80 mm thickness

Structure and refrigeration

• Structure: panels in white plastic-coated steel internally and externally; stainless steel available as option
• Internal trays: 4 stainless-steel trays/trolleys with handles and rollers for insertion/extraction
• Monoblock: ventilated refrigeration with automatic defrost and condensate evaporation
• Controls: main switch, alarm system, temperature recorder option, internal lighting

Dimensions

• Internal dimensions (excluding monoblock): WxDxH 1210 x 2260 x 2260
• External dimensions (with monoblock): LxPxH 104 x 235 x 283 cm
• External dimensions (without monoblock): LxPxH 104 x 235 x 238 cm

Accessories and options

• Alarm system and temperature data recorder
• Hydraulic or electric body trolleys, roller trolleys
• Optional stainless-steel interior/exterior finish
• Additional accessories: drain point, supplementary steel trays, protective packaging

Technical specifications

• Insulation thickness: 80 mm PUF, CFC-free
• Number of trays included: 4 (AISI 304, with central drainage incline and handles)
• Refrigerant: R290
• Voltage: 230/1/50 Hz
• Door dimensions: 72 x 180 cm (approx.)
