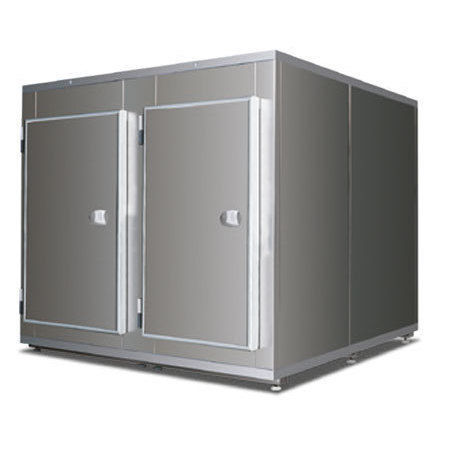

Body tray mortuary cabinet CAM020402

4-body2-doormodular

Short description
Modular mortuary chamber for 4 bodies on 2 levels with 2 doors. Available for positive storage (+2 / +8 °C) or, on request, negative storage (-10 / -20 °C). Delivered in panels for on-site assembly.

Applications

• Designed for hospitals, funeral homes and morgues requiring safe short- or long-term storage of human remains.
• Suitable for installations where modular delivery and on-site assembly are required.

Structure and refrigeration

• Capacity: 4 bodies; Levels: 2; Doors: 2 with lock and name tag holder.
• Cooling unit: aggregate monoblock mounted in the upper part. Available as refrigerator (+2 / +8 °C) for short-term or as freezer (-10 / -20 °C) for long-term; freezer version doors supplied with heating elements.
• Structure: white plastic-coated steel internal/external; stainless steel available as option.
• Insulation: high-density polyurethane foam (PUF), CFC-free; thickness 80 mm.
• Internal fittings: 4 body trays with handles; seamless deep-drawn stainless steel inner surfaces for easy cleaning.
• Controls: thermostat with main switch and alarms; temperature setting precision 0.1 °C. Internal lighting and automatic evaporation of condensate.

Dimensions & technical data

• External dimensions excluding monoblock (WxDxH): 1910 x 2260 x 1960 mm.
• Insulation thickness: 80 mm.
• Temperature ranges: +2 / +8 °C or -10 / -20 °C.
• Number of trays: 4.

Accessories

• Alarm system and temperature data recording (optional).
• Body trolleys and transport carts.
• Optional stainless steel finish and additional stainless steel basins.

Delivery & installation
Unit supplied disassembled in panels with structure and monoblock to be installed on site. Includes automatic condensate evaporation and floor drain provision. Technical integration and electrical connection required on site.
