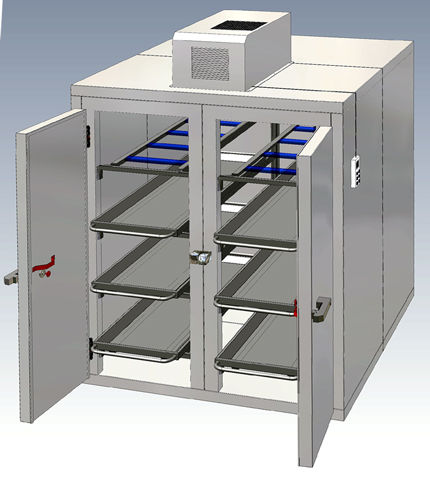

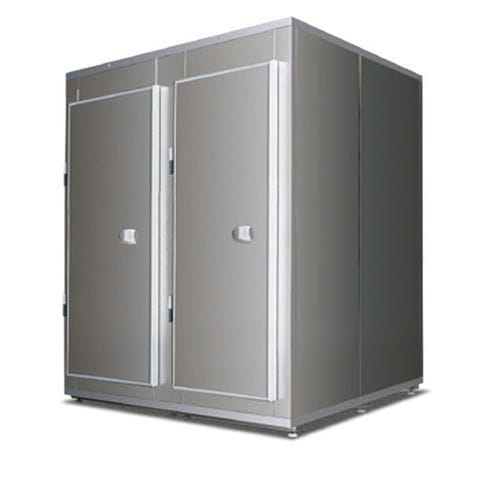

Mortuary stretcher refrigerated mortuary cabinet CAM040802

8-bodyfront-loading2-door

Overview
Modular mortuary chamber designed for short- or long-term preservation of human remains. Delivered in flat panels for on-site assembly with a top-mounted monoblock refrigeration unit. Options for internal/external stainless-steel finish or white plastic-coated steel.

Capacity & configuration

• Number of bodies: 8 internal trays with handles
• Configuration: modular panels, 4 levels (tray arrangement to be assembled on site)
• Doors: 2 doors with locks and name-tag holders

Construction & materials

• Structure: modular panels in white plastic-coated steel (standard) or stainless steel (option)
• Internal trays: seamless deep-drawn stainless-steel trays designed for easy cleaning, without welded corners
• Delivery: unit supplied disassembled (panels and monoblock) for installation on site

Refrigeration & controls

• Cooling options: positive refrigeration (+2 to +8°C) for short-term storage or freezer version (-10 to -20°C) for long-term storage
• Doors (for freezer version): supplied with heating elements to prevent icing
• Monoblock: aggregate unit mounted in the upper part of the chamber
• Controller: main switch, alarms, temperature setting with 0.1°C precision and general system monitoring
• Defrost & condensation: automatic evaporation of condensate
• Lighting: internal illumination provided

Insulation & dimensions

• Insulation: high-density polyurethane foam (PUF) without CFC
• Insulation thickness: 80 mm
• Internal dimensions (excluding monoblock): W x D x H 1210 x 2260 x 2260 mm

Accessories & options

• Optional alarm and temperature-recording system
• Body-handling trolleys (hydraulic or electric) and additional stainless-steel baths
• Optional stainless-steel internal/external cladding and additional accessory kits on request
