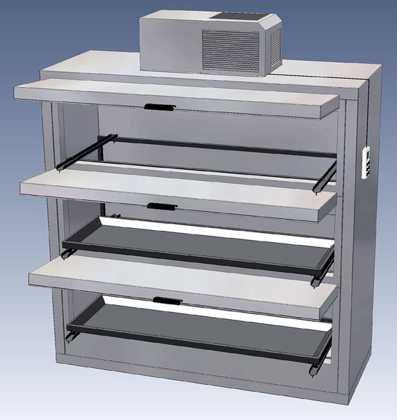

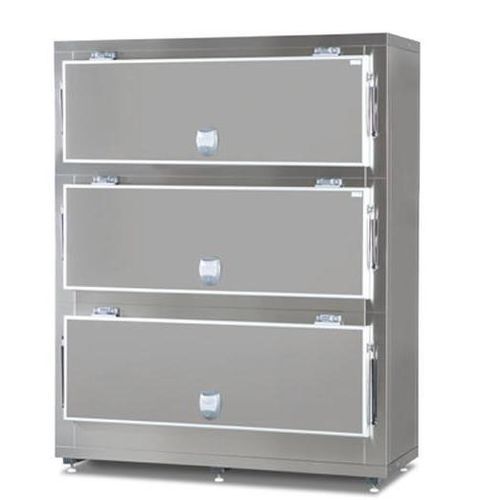

Mortuary stretcher refrigerated mortuary cabinet MCL0003

for body trays3-bodyside-loading

Overview
Modular mortuary cold chamber MCL0003 for storage of 3 bodies with side-loading doors. Available in a positive-temperature version for short-term preservation (+2 ÷ +8 °C) or a negative-temperature version for medium- to long-term preservation (adjustable between -15 ÷ -20 °C). Standard construction uses white plastic-coated steel inside and out; full stainless-steel construction available on request.

Key features

• Storage capacity: 3 bodies
• Side loading with 3 individual doors (locking and name-tag holder)
• Temperature options: +2 ÷ +8 °C (positive) or -15 ÷ -20 °C (negative)
• Structure: white plastic-coated steel (optionally full stainless steel)
• Delivered disassembled: panels, frame and refrigeration monoblock for on-site assembly
• Internal equipment: stainless-steel stretchers with handles, tubular frame with rollers and guides for safe transfer
• Refrigeration: ventilated system with automatic defrost and automatic condensate evaporation

Supply and installation
Unit supplied disassembled for on-site assembly. Panels, frame and refrigeration monoblock are installed on site. Refrigeration monoblock is mounted on the upper part of the structure. Includes thermostat with main switch and alarms, internal lighting, drain outlet and automatic condensate evaporation. Internal tubular stainless-steel frame and stretchers ensure safe handling between trolley and chamber.

Accessories available on request

• DMLP TOUCH DIGITAL MONITOR (temperature and alarm monitoring with data recording)
• DMLP PRINTER
• Power supply variant 220V/1~/60Hz
• Additional body tray
• Electric trolley with guides (H cm 39 - 202)
• Wooden crate packaging

Technical specifications

• Category: Mortuary Cold Chambers - STANDARD
• Code: MCL0003
• Denomination: 3 bodies
• Storage capacity: 3 bodies
• Temperature range: +2 ÷ +8 °C or -15 ÷ -20 °C
• External dimensions (WxDxH): 240 x 105 x 272 cm
• Dimensions with monoblock (WxDxH): 240 x 105 x 253 cm
• Dimensions excluding monoblock (WxDxH): 240 x 105 x 208 cm
• Number of doors: 3 (locking with name-tag holder)
• Door dimensions (approx): 210 x 44 cm
• Refrigerant gas: R290
• Voltage: 220/1/50 Hz
• Number of body trays: 3
• Insulation: high-density PUF (CFC-free)
• Insulation thickness: 80 mm
• Refrigeration type: ventilated
• Defrost: automatic with condensate vaporization
• Controller: STANDARD electronic controller
• Interior equipment: stainless-steel stretchers with handles, tubular frame with rollers and guides for safe transfer
